Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
MF30A Cable Coaxial Connectors SMK 2.92mm Male Stainless Steel Precision K (2.92mm)
2.92mm (K) Connectors are RF/Microwave coaxial connectors that operate mode-free up to 40 GHz. These connectors are compatible to mate with SMA and 3.5mm connectors. The 2.92mm connectors were originally introduced by Mario Maury in 1974 and then re-introduced by Wiltron in 1984 as the K connector are ideal for high-frequency module and T&M applications.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Precision manufacturing allows superior electrical performance to 40 GHz
*Female contacts have a unique three-slot construction, which enhances connectivity by creating a more rugged connector while reducing the chance of intermittent connections
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:

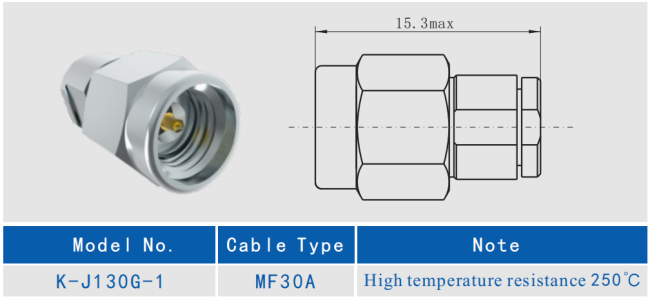

| K-J130G | K male straight stainless steel for MF30A |

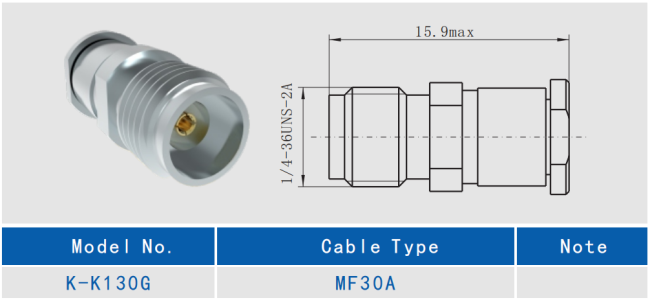

| K-K130G | K female straight stainless steel for MF30A |
| K-JW130G-3 | K Male Right Angle Stainless Steel for MF30A | High temperature resistance 250°C |
