4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material
4-hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material
Xi'an Elite Electronic is a 2.92mm Female to 2.92mm Female in series adapter manufactured. This in series 2.92mm to 2.92mm coax adapter will operate up to 40 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. Bulkhead adapters and right angle adapters are also available.
The 2.92 series is a precision millimeter wave connector developed on the basis of SMA, which is compatible and interchangeable with SMA, 3.5 series products, using air interface, with the advantages of small size, light weight, high frequency, reliable connection, etc., widely used in modern precision measurement field and all kinds of millimeter wave communication equipment.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
* Frequency range DC to 40 GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series
Application:
* High Speed Digital
* Instrumentation
* Aerospace
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement
Related products:

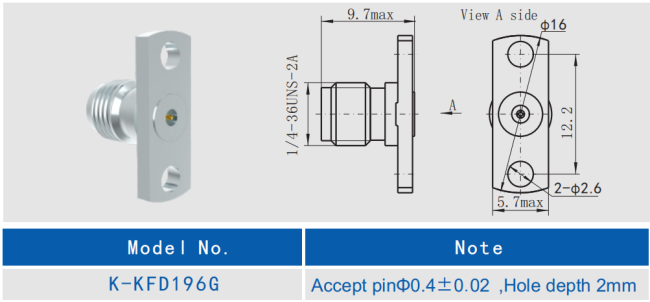

| K-KFD196G | K female 2-hole flange straight stainless steel connector |
| K-KFD179G | K female 2-hole flange straight stainless steel connector |
