Straight Female SMP RF Connector for Semi Rigid/Flex Cable Inner Conductor 0.29mm
Straight Female SMP RF Connector for 1#Semi-rigid/Flex Cable Inner Conductor=0.29mm
The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.
The available detent systems, full, limited, and smooth bore, provide respective levels of engagement/disengagement forces. This family of interconnects addresses small package design needs. It can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet adapter. This floating bullet provides a link between mated pairs compensating for both radial and axial misalignment.
Specification of SMP RF Connector
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits of SMP RF Connector
| * Designed to accommodate both radial and axial misalignment * Push-on and snap-on mating styles for quick installation * Designs available for board-to-board and cable-to-board configurations |

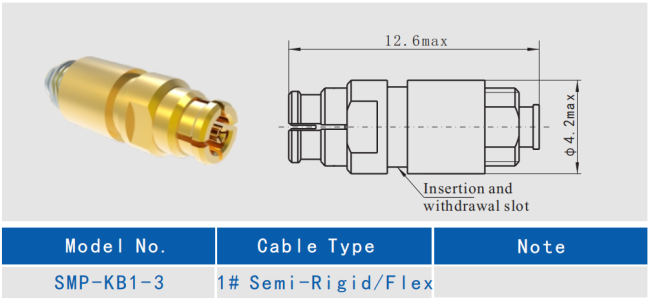

Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP-KB1-3 | SMP Female RF Connector for 1#Semi-rigid/Flex Cable Inner Conductor=0.29mm |

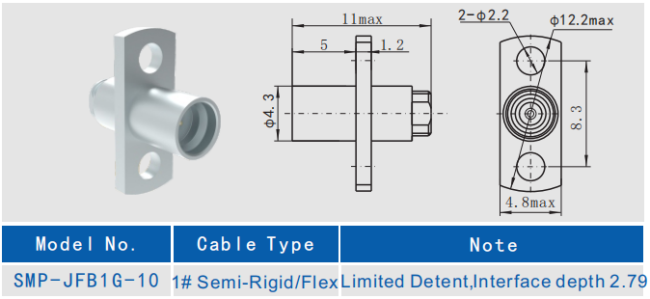

Other SMP RF Connector(mm): "K" means "female", "J" means "male"
Applications of SMP RF Connectors:
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
