SMP Male Stainless Steel Limited Detent, Interface depth 2.79 for 1# Semi-rigid/Flex Cable

SMP series product is an ultra-small push-in RF coaxial  connector, which has the characters of small size, light weight, excellent

vabration-proof performance, and wide working frequency bandwidth, etc. Operating frequency up to 30GHz (Elite Electronic's

product of high performance SMP connector can reach 40GHz), and the plug has three interface forms- full detent, limited detent

and smooth bore(including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating

in the couple usage of board-toboard system. It’s suitable for the install situation with the requirement of high reliability modular intensive.

Specification of SMP RF Connector


Features and Benefits of SMP RF Connector

* Optional bullet adaptors in two standard lengths
* Performance up to 40GHz
* Compensates for misalignment in X and Y directions
* Interfaces for tight, more secure connections
* Non-magnetic options available for aerospace applications

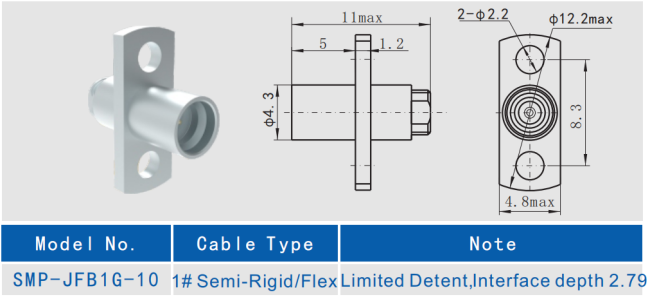

Detailed Drawing of SMP RF Connector(mm):

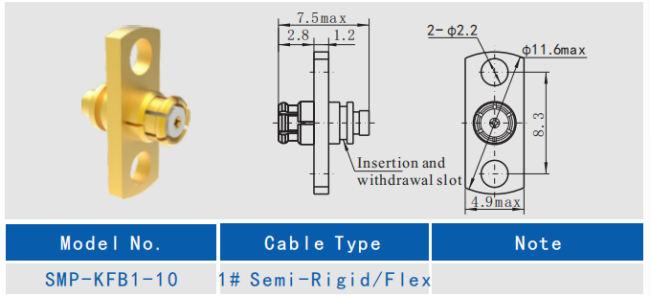

Other SMP RF Connector(mm): "K" means "female", "J" means "male"

Applications of SMP RF Connectors:

- Antennas
- Broadband
- Aerospace

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

NOTE:
