Female SMP RF Connector for Straight Cable 50Ohm
SMP Female Straight Cable 50Ohm SMP RF Connector for 2#Semi-rigid/Flex Cable
SMP RF Connector Introduction
SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and simplifying the whole production process.
Xi'an Elite Electronic SMP connectors are suitable for a wide range of board-to-board and cable-to-board applications up to 40GHz. Such a broad frequency range allows from the lowest to the highest mechanical loads to be handled including those experienced in 5G mobile telecommunications, test & measurement and aerospace applications.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits
| DC to 40GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Male & Female, Straight & Right Angle choice |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |

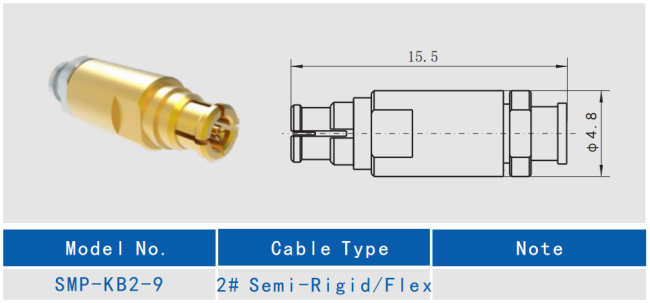

Detailed Drawing of SMP Female Straight Cable 50Ohm SMP RF Connector for 2#Semi-rigid/Flex Cable:
Applications
- Antennas
- Broadband
- Instrumentation
- Aerospace
- Instrumentation
- Broadband
- Board-to-board interconnect
- Phased array antennas
Product Cataloge:
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
