SMP Female Right Angle 2 Holes Flange Connector for 2# Semi Rigid/Flexible Cable
SMP Female Right Angle 2-hole Flange Connector for 2#Semi Rigid/Flexible Cable
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and smooth bore (including with catcher mitt).
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

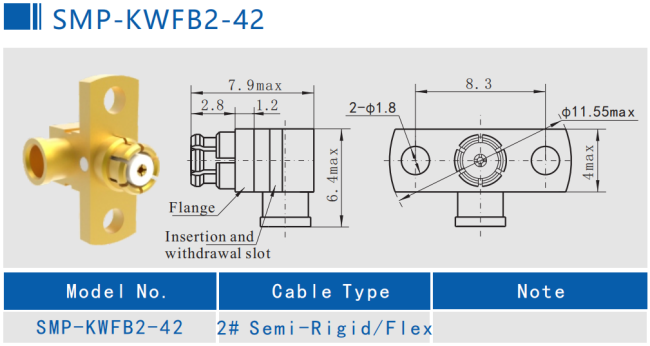

Outline Drawing of
SMP Female RF Connector
| Model No. | L(mm) |
| SMP-JFB2-69 | L=7.6, Male, Limited detent, Interface deepth 2.79 |
| SMP-KB2-9 | L=15.5, Male, Limited detent |
| SMP-KFB2-87 | L=7.3, Female, Limited detent |
| SMP-KFB2-96 | L=12.5, Female, Limited detent |
| SMP-KWB2-23 | Right angle, Female, Limited detent |
| SMP-KWFB2-42 | Right angle, Female, Limited detent |
Features:
*Can terminate to coax, PCB (printed circuit board), shroud or terminal;
*Can be male or female gender with 50Ohm impedance;
*Body can be straight or right angle;
*Mount Method can be bulkhead, 2 holes panel or mount-less;
*Attachment methods include solder, crimp/solder or solder/solder;
*Body is brass or stainless steel.
