SMP Female Flange Mount RF Cable Connector for CXN3506/MF108A

RF Connector Introduction

A coaxial RF connector is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. Better models also minimize the change in transmission line impedance at the connection in order to reduce signal reflection and power loss. As the frequency increases, transmission line effects become more important, with small impedance variations from connectors causing the signal to reflect rather than pass through. An RF connector must not allow external signals into the circuit through electromagnetic interference and capacitive pickup.

Electrical Characteristics:

Material & Mechanical Characteristics:

Features and Benefits:

- DC to 40GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male & Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore

Applications:

• Antennas
• Aerospace
• Board-to-board interconnect
• Telecommunications
• Instrumentation

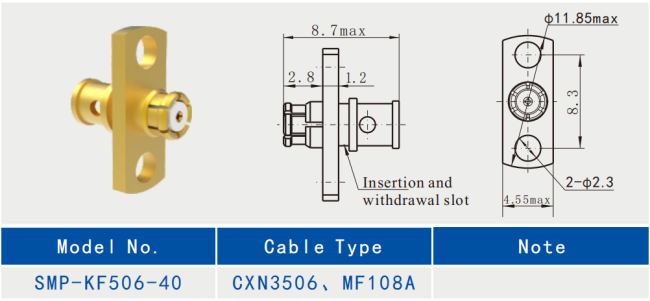

Outline Drawing and Picture of

2-Hole Flange SMP Female Jack Electronic Connector:

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
