Stainless Steel SMP Plug Male Bulkhead RF Connector With Long Metal Convex Surface
Stainless Steel SMP Plug Male Bulkhead RF Connector with Long Metal Convex Surface
SMP RF Connector Introduction
The SMP interface is a small-sized connector that matches the dimensions of MMCX connectors, but it offers a wider frequency range of DC to 40GHz. The SMP interconnect series employs floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This sturdy construction and the ability to tolerate radial and axial misalignment enable blind interconnection solutions. It is commonly utilized in compact high-frequency coaxial modules.
Features and Benefits
Gold plated & passivated stainless steel connectors are designed to meet the industry standard per MIL-STD-348. They have a frequency range of DC - 40 GHz and can be coupled using push-on or snap coupling methods. The connectors come in both male and female options, with straight and right angle choices available. Additionally, they can be mounted using normal type or hermetic seals, either through flange mount or thread-in mount.
The plugs in these connectors come in three different interface forms: full detent, limited detent, and smooth bore (including those with braking). Custom connectors can also be provided upon request.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/ | |

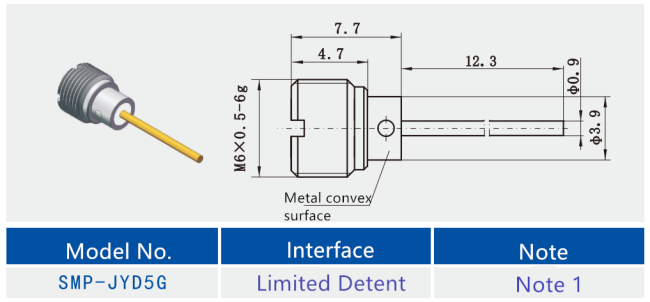

Outline Drawing:(Unit:mm)
![]()
Applications
- Radio waves: The invisible waves that carry information from one place to another through the air or space.
- Connecting devices: Devices used to connect two or more electronic circuits together, allowing them to communicate and exchange data.
- Communication systems: Systems that enable the transmission and reception of information between individuals or devices over long distances.
- Measurement tools: Devices used to measure and monitor various physical quantities such as temperature, pressure, and voltage in different applications.
Product Cataloge:
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
