Male SMP Stainless Steel 4 Holes Flange Mount RF Connector With Insulation Convex Surface
Durable Male SMP Stainless Steel 4 Holes Flange Mount RF Connector with Insulation Convex Surface
SMP RF Connector Introduction
The SMP interface is a small form-factor connector that measures the same as an MMCX connector, but it has a broader frequency range of DC to 40 Ghz. The SMP interconnect series utilizes floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This resilient structure and capacity to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly employed in compact high-frequency coaxial modules.
Features and Benefits
The connector is designed according to the industry standard MIL-STD-348. It has a frequency range of DC to 40GHz and is made of gold plated and passivated stainless steel. The coupling can be either push-on or snap type. There are options for male and female connectors, as well as straight and right angle versions. Additionally, there are choices for normal type and hermetic seals, with flange mount and thread-in mount options. The plug comes in three interface forms: full detent, limited detent, and smooth bore (including those with braking). Custom connectors are also available upon request.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

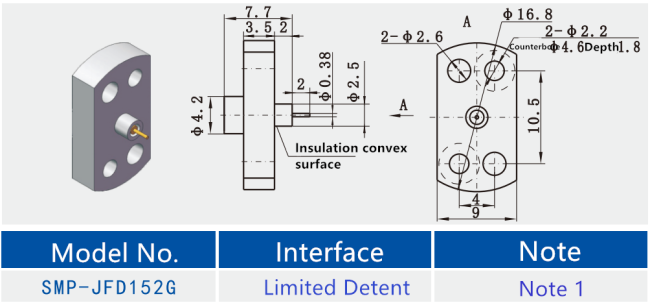

Detailed Drawing of
Durable Male SMP Stainless Steel 4 Holes Flange Mount RF Connector with Insulation Convex Surface:
Applications:
SMP stainless steel plugs are highly shielded micro-pluggable coaxial cable connectors that are suitable for applications up to 40GHz. SMP (Super Miniature Push-On) connectors offer push-on or snap-in types for easy installation. SMP connectors are typically made of stainless steel, beryllium copper, and PTFE materials, providing excellent durability and reliability.
Product Cataloge:
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
