Reliable SMA Female to ASMP Female RF Adapter for Seamless Connectivity and Optimal Performance

ASMP is a novel blind mate RF connector that shares the same structure and usage method as SMP. Its outline dimension is approximately 22% larger than SMP, resulting in almost 30%~50% higher transmission power. ASMP is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. The male SMP connector comes in two interface forms - full detent and smooth bore, while the female connector only has one interface, which can be mated with any kind of male connector.

The SMA RF coaxial connector is a small, high-frequency coaxial connector that adheres to MIL-C-39012 standards. It is characterized by its compact size, broad frequency range, excellent mechanical and electrical properties, as well as high reliability. This connector is the most popular choice for RF coaxial applications and is widely used in microwave communication, microwave measurement equipment, and other fields. Our company's advanced line of high-performance connectors can operate up to 20 GHz frequencies.

Features:

The SMA connector is a widely used, half-precision, ultra-small RF and microwave connector, particularly suitable for RF connections in electronic systems with frequencies up to 18GHz or even higher. It comes in various forms such as male, female, straight, right-angle, and bulkhead fittings to meet different application needs. The name of this connector originates from the Sub-Miniature A connector, which is commonly used to provide RF connections between circuit boards. Many microwave components including filters, attenuators, mixers, and oscillators use this type of connector.

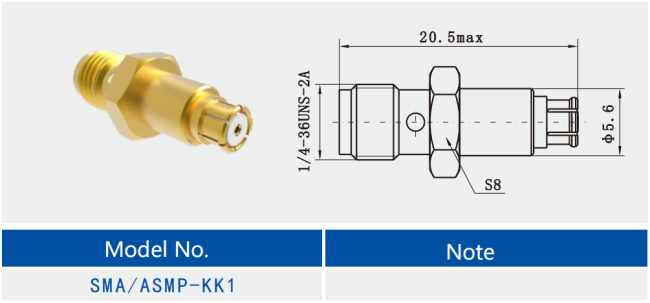

Outline Drawing of
Reliable SMA Female to ASMP Female RF Adapter for Seamless Connectivity and Optimal Performance


Install Introduction:



NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
