SMP Male 50Ohm Limited Detent Stainless Steel RF Connector Plug,Engagement depth:2.79
SMP Male 50Ohm Limited Detent Stainless Steel RF Connector Plug,Engagement depth:2.79
SMP is a compact, push-on RF coaxial connector adapter that boasts severalSMP is a compact, push-on RF coaxial connector adapter that boasts several key features, including small size, lightweight construction, excellent seismic performance, and broad operating bandwidth. Its operating frequency can reach up to 30GHz (with our high-performance SMP connector, it can even reach 40GHz), and the plug features three interface forms: full detent, limited detent and smooth bore (including with braking). These various interface forms can satisfy the required axial or radial movement of blind mating in the coupling usage of broadband to broadband connectors. It is ideal for installations that require high reliability and modular intensity.

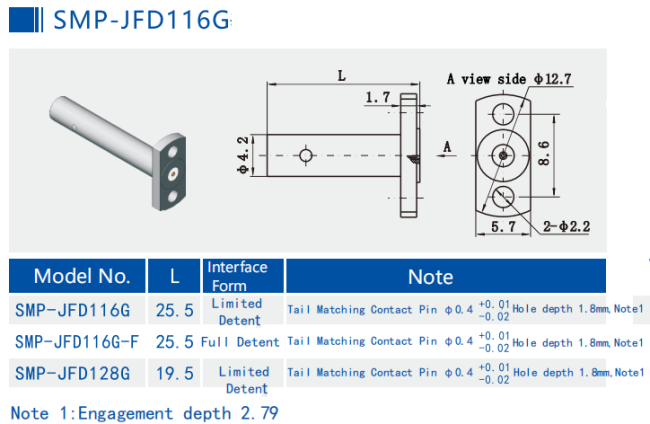

Outline Drawing(mm)
| Model No. | Description |
| SMP-JFD116G |
SMP male rf connector, stainless steel, limited detent |
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-³ Pa·cm³ /s
|
|||
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
