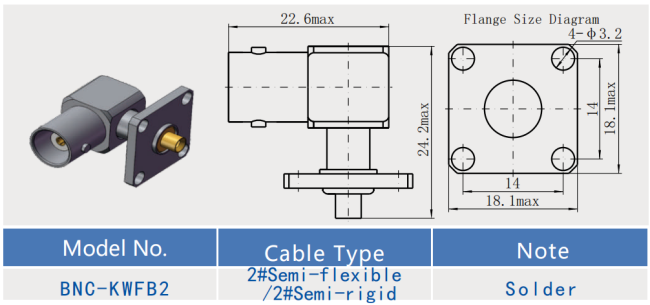

BNC Female Right Angle Flange Mount RF Connector For 2# Semi Flexible / Rigid Cable
BNC Female Right Angle Flange Mount RF Connector for 2#Semi-flexible/Semi-Rigid Cable
The BNC connector, also known as the Bayonet NeillThe BNC connector, also known as the Bayonet Neill-Concelman connector, is a small and fast RF connector used for coaxial cables. It features two bayonet lugs on the female connector that can be mated with just a quarter turn of the coupling nut. BNC connectors are particularly suitable for terminating miniature-to-subminiature coaxial cables such as RG-58, 59, to RG-179, RG-316. They are widely used in radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and were once a popular choice for 10BASE2 computer networks. BNC connectors are designed to match the characteristic impedance of cables at either 50 ohms or 75 ohms.It works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment. Which have the bayonet structure coupling mating and developed according to MIL-C-39012/16-24l, They can be interchangeable with the same-type connectors of abroad, engaged and disengaged rapidly, used to connect coaxial cables in radio equipment and instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 500 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤2.0mOhm |
| Center conductor | ≤0.5mOhm | |
| VSMR | ≤1.3 | |
Product Detail:
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.58N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -45 to +155Deg C |
| IP Rating ( Mated ) | IP67 |
Features:
- BNC connector is a common RF terminal coaxial cable terminator.
- BNC connector consists of a central pin, a jacket, and a clamp.
- It includes three parts: BNC connector base, jacket, and probe.
- BNC plug is a standard coaxial cable connector, and BNC cable connector must be connected to both ends of each cable segment.
- There are many available formats for BNC connectors. In addition to plugs and sockets, other RF components such as attenuators and adapters can also be used in conjunction.
Application:
* Computer/LANs
* Radio/CCTV
* Broadband
* Instrumentation
* Antennas
* Telecom
* Computers
* High-speed cable modems
* Broadcast
* Video systems
* Automotive
* Telecommunications
* Wireless industries
* Measurement equipment
* Base stations
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
