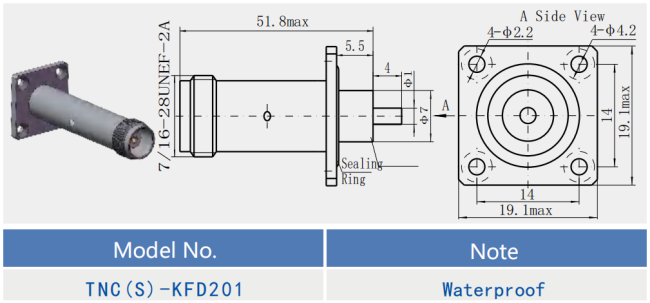

TNC Female Waterproof 4 Hole Flange PCB Mount RF Connector Excellent Signal Transmission
Excellent Signal Transmission TNC Female Waterproof 4 -hole Flanges PCB Mount RF Connector
The TNC series product is a threaded version of the BNC connector. The TNC RF connectors have screw threads for mating. These connectors are miniature, threaded, and waterproof units with a constant 50Ohm impedance that operate from DC to 11GHz. There are two types of TNC connectors: standard and reverse polarity. These low-cost connectors typically use die-cast and molded components. Although their performance may not be equal to industrial products, these connectors are ideal for various commercial applications. They are widely used for antenna connections and have many applications in avionics,communications,and general industrial markets. Reverse polarity and 75Ohm TNC connectors are also available.
Specification
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Although the performance may not match industrial or high quality-grade products, these RF crimp connectors are ideal for various commercial applications.
- The TNC series RF Electronic connector is designed as a threaded version of the BNC connector.
- The TNC RF connectors feature screw threads for mating. They are miniature, threaded, waterproof units with a constant 50 ohm impedance that operate from DC to 11GHz.
- There are two types of TNC connectors: standard and reverse polarity.
- These low-cost RF connectors from China suppliers typically use die-cast and molded components.
- The TNC series products are a type of whorl joining that has a wide working frequency range and provides reliable connections.
Application:
-
Aviation and Aerospace: TNC connectors are widely used in avionics systems for connecting antennas, transceivers, and other RF components.
-
Defense and Military: These connectors are used in military communication systems, radar systems, and other defense equipment due to their reliability and ruggedness.
-
Communication Systems: TNC connectors are employed in radio communication systems, such as two-way radios, walkie-talkies, and base stations.
-
Test and Measurement Equipment: These connectors are utilized in test equipment, oscilloscopes, spectrum analyzers, and signal generators for connecting RF cables and devices.
-
Research and Development: TNC connectors are used in research labs for connecting RF equipment and conducting experiments in the field of electronics and telecommunications.
-
Consumer Electronics: TNC connectors can be found in some consumer electronic devices, such as amateur radio equipment and ham radio sets.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
