Gold Plated RF Coaxial SMP Female Jack Right Angle Flange Mount RF Connector

SMP RF Connector Introduction

SMP is a compact push-on or snap RF coaxial connector that provides a small form factor, light weight, superior seismic performance, and broad operating bandwidth. It has an operational frequency range of up to 30GHz (our SMP connectors can achieve 40GHz), and the plug offers three interface options: full detent, limited detent, and smooth bore (with braking capability).

Electrical Characteristics:

Material & Mechanical Characteristics:

Features and Benefits:

- DC to 40GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore

Applications:

1. Communication systems: SMP connectors can be used in wireless communication base stations, satellite communications, radar systems, radio communications, and more.

2. Testing and measurement equipment: SMP connectors are suitable for use in RF test instruments, microwave device testing, signal generators, and other applications.

3. Automotive industry: SMP connectors can be used in automotive radars, in-car communications, navigation systems, and other automotive applications.

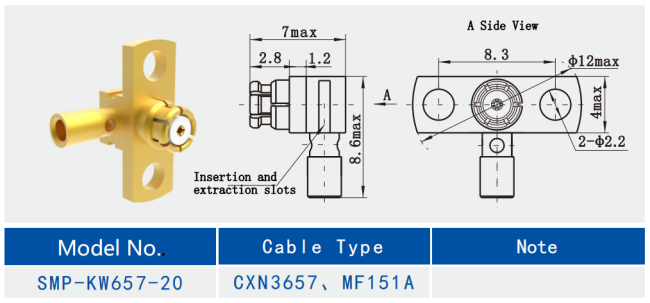

Outline Drawing and Picture of

Custom Gold Plated RF Coaxial SMP Female Jack RF Connector:

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
