Gold Plated BMA Male Right Angle Flange Mount RF Connector For CXN3506 / MF108A Cable
Gold Plated BMA Male Right Angle Flange Mount RF Connector for CXN3506/MF108A Cable
The BMA series is a type of blind mate connector that is developed and produced according to IEC1169-33. It features a new type spring plate structure, providing reliable contact and superior electrical characteristics. The advantage of this connector is that it can float axially and radially, with a small average space between each point connector and light weight, making it suitable for use in the blind mate of chassis cabinets. The BMA series is widely used in module connectors for chassis cabinets. They are interchangeable with the same-type connectors from abroad, allowing for rapid engagement and disengagement, and are commonly used to connect coaxial cables in radio equipment and instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤2.0mOhm |
| Center conductor | ≤0.5mOhm | |
| VSMR | ≤1.3 | |

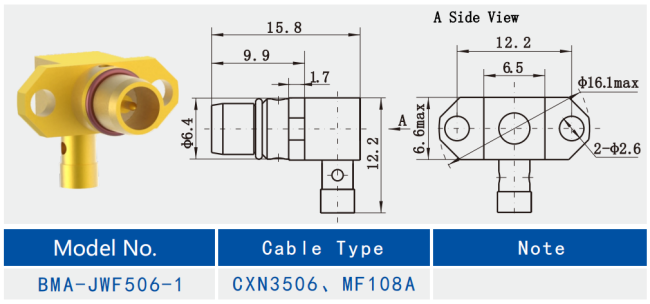

Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass, stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -55 to +155Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Reliable contact and superior electrical characteristics
- Axial and radial floating capability
- Small average space between each point connector
- Light weight
- Suitable for use in the blind mate of chassis cabinets
- Interchangeable with the same-type connectors from abroad
- Rapid engagement and disengagement
- Commonly used to connect coaxial cables in radio equipment and instruments.
Application:
* Broadband
* Instrumentation
* Telecom
* Computers
* Broadcast
* Video systems
* Automotive
* Telecommunications
* Wireless industries
* Measurement equipment
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
