Stainless Steel SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable
SSMA Male Right Angle RF Connector for SFF-50-1.5-1 Cable
Key Features:
- Space saving alternative to standard SMA
- Threaded coupling mechanism offers reliability for rugged designs
- Ideal for high-frequency applications
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

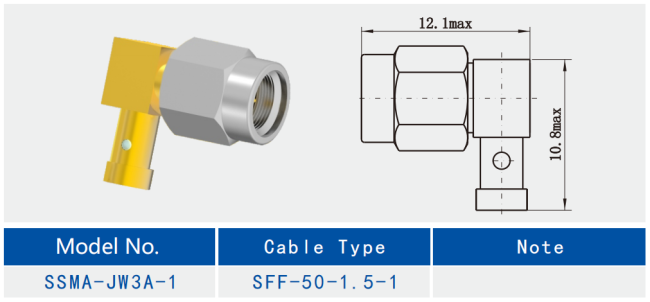

Detained outline drawing:
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
The SSMA connector is a super-miniature RF coaxial connector with operating frequency range of DC-34 GHz, and some versions can even reach up to 35 GHz and expandable to 40 GHz. In addition, the standard SSMA connector has a characteristic impedance of 50 ohms. Due to its small size and stable characteristics, it is widely used in high-performance applications such as aerospace, defense, and wireless communications. At the same time, these connectors are also suitable for applications that require high-speed data transmission.
Interface Dimentions:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
