SMA Female Right Angle Flange Mount RF Connector Matched Pin φ0.4
SSMA Female Right Angle Flange Mount Matched Pin φ0.4 RF Connector
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

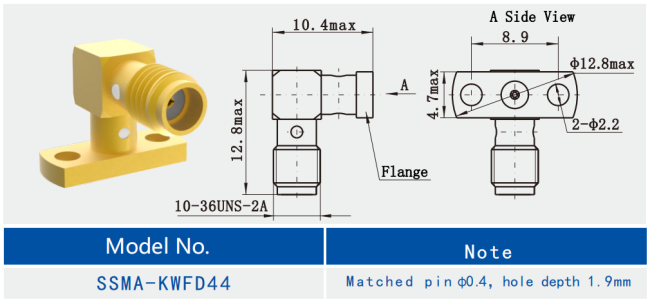

Outline Drawing:(mm)
Similar Products:
1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack
| Model No. | L | L1 | D | D1 | D2 | Note |
| SMA-KFD193 | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 | Terminal flat side is parralled to the long side of the flange |
| SMA-KFD524 | 5 | 2.5 | 0.5*0.2 | 4 | 2.6 | |
| SMA-KFD773 | 4 | 4 | φ1.3*0.2 | 5.2 | 2.2 | |
| SMA-KFD1207 | 3.5 | 5 | 0.5*0.2 | 4.1 | 2.6 |
2.Hermetically sealed Female SMA RF Conectors
| Model No. | Note |
| SMA(M)-KFD | Hermetic seal SMA female 4-hole flange rf connector |
3.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors
| Model No. | D | Note |
| SMA-KWFD2 | 0.2*0.5 | SMA female right angle 4-hole flange rf connector |
| SMA-KWFD109 | 0.5*0.2 |
Application:
The SSMA connector is a miniaturized coaxial connector primarily used for high-frequency applications. It has a characteristic impedance of standard 50 ohms and is suitable for high frequency ranges, typically between DC to 26.5 GHz. Due to its high performance characteristics, the SSMA connector is widely used in various industries such as aerospace, defense, and wireless communications.
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
