Gold Plated SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable
Gold Plated SMA Male Right Angle RF Connector for SFF-50-1.5-1 Cable
High Performance SMA RF Connectors:
-
SMA RF connectors are available in various interface styles, such as quick connect, push-on, or standard; configurations include straight, 90-degree angles, bulkhead, and 4-hole panel options. The SMA RF connector is known for its high quality and ease of assembly, requiring only the threading of two connectors together, without the need for soldering or crimping. SMA electrical connectors are extensively utilized in applications like microwave technology, antenna systems, and testing equipment. SMA RF connectors are threaded-type coaxial connectors that are compact, resistant to vibration, and support a broad frequency range up to 18 GHz (our SMA RF connectors can achieve performance up to 20 GHz).
Please click and download attached Catalog SMA Adapter.pdf for more items. Customized sizes are welcomed.
Our Advantange:
-
Qualified components supplier of China
-
20 years experience on RF & Microwave Components
-
Rich cooperation experience with national high tech projects
-
High quality and commercial grade components for choice
-
Strict quality (QA Report),ISO9001,ROHS,CE,UL
-
Factory area 35,000 sq.m with almost 1,000 experience staff
-
500+ national patents with 15 production lines
-
Annual output value above US$300 million
-
50+ series products with 100,000 types
-
Short delivery and competitive price
-
Custom-made(ODM) orders are welcomed
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated | ||||
| Female | Sn-P Bronze Gold plated | |||||
| Elastic Contact | Beryllium bronze Nickel plated | |||||
| Shell and other Metal Parts | Brass Nickel plated | |||||
| Stainless Passivation | ||||||
| Crimping Sleeve | Brass Nickel plated | |||||
| Tightening torque of connection | 0.79－1.13N .m | |||||
| Durability | 500 cycles | |||||
| Sealing Ring | Silicone Rubber | |||||
| Insulators | PTFE | |||||
Applicable Standard:
-
MIL-C-39012
-
IEC 60169-15
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
More Details of

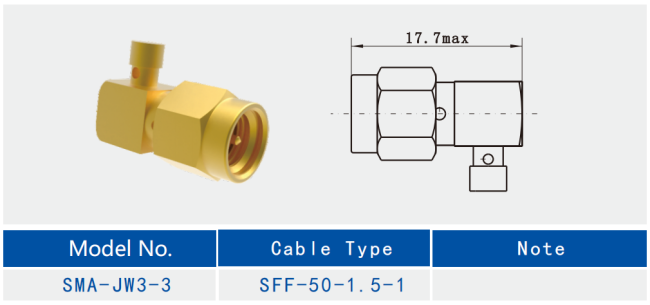

Gold Plated SMA Male Right Angle RF Connector for SFF-50-1.5-1 Cable:
(Unit:mm)
Applications:
*Microwave Communication: Originally designed for 12GHz, SMA connectors play a vital role in microwave communication systems, particularly in electronic systems operating at frequencies up to 18GHz or even higher.
*Telecommunications: SMA connectors are suitable for use in telecommunications, such as mobile phone base stations and satellite communications, where high-frequency connectivity is required.
*Networking Equipment: In networking hardware, SMA connectors are used for RF connections that enable high-speed data transmission.
*Wireless Communications: Wireless communication devices, like wireless routers and access points, also commonly use SMA connectors to ensure stable signal transmission.
*Test and Measurement Equipment: In test and measurement equipment, SMA connectors are critical for accurate signal measurement and analysis.
*Antenna Systems: SMA connectors are used in various antenna systems to connect antennas to RF transmission lines, providing high-quality signal transfer.
*Optical Bench Alignment: In optical equipment, SMA connectors can be used for hardware positioned on optical benches, facilitating precise mounting and adjustment of devices.
Our products contains:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
*Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
With high quality and reasonable price we warmly welcome your business cooperation.
