SMP Male Limited Detent RF Connector Engagement Depth 2.79 RF Connector

The SMP is a compact RF coaxial connector that can be easily pushed on or snapped into place, offering a small size, lightweight design, exceptional resistance to vibrations, and a wide operating frequency range. It is capable of functioning up to 30GHz, with some models extending this capability up to 40GHz. Additionally, the plug of this connector provides three different interface choices for compatibility and flexibility in various applications.

Electrical Characteristics:

Material & Mechanical Characteristics:

Features and Benefits:

1. Compact Design: The SMP connector is designed to be extremely compact, making it ideal for use in situations where space is limited, such as in aerospace, military, and telecommunications equipment.

2. Wide Operating Bandwidth: The SMP connector can handle a wide range of frequencies, typically from direct current (DC) up to 40 GHz, with some variants even capable of supporting higher frequencies. This broad bandwidth makes it suitable for various RF applications, including those that require the transmission of high-data-rate signals.

3. High Reliability: With its push-on or snap-fit design, the SMP connector ensures a secure connection that is robust against vibrations and mechanical shock. This reliability makes it a prime choice for critical or high-performance applications where signal integrity is paramount.

4. Easy Installation and Blind Mating Capability: The SMP connectors are easy to install and can be mated without visual confirmation, thanks to their unique design that provides an audible click and tactile feedback when the connections are properly engaged. This feature simplifies the assembly process in complex systems.

5. Interface Options: Some SMP connectors offer different interface options for the plug, providing flexibility for various types of connections and allowing compatibility with multiple devices or systems.

6. Lightweight: In addition to being compact, SMP connectors are also lightweight, which is another important factor in applications where every gram counts, such as in aerospace technology.

7. Excellent Seismic Performance: SMP connectors are designed to maintain reliable electrical connections even in the presence of significant mechanical shocks and vibrations, making them suitable for harsh environments.

Applications:

1. Communication systems: SMP connectors can be used in wireless communication base stations, satellite communications, radar systems, radio communications, and more.

2. Testing and measurement equipment: SMP connectors are suitable for use in RF test instruments, microwave device testing, signal generators, and other applications.

3. Automotive industry: SMP connectors can be used in automotive radars, in-car communications, navigation systems, and other automotive applications.

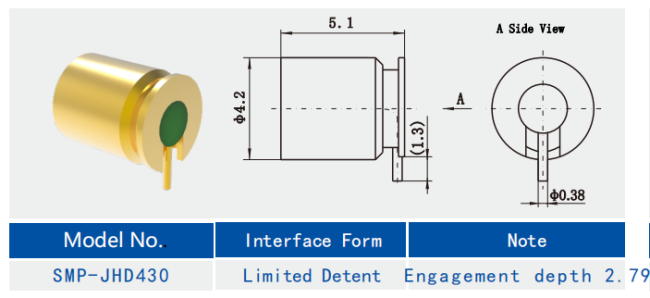

Outline Drawing and Picture of

SMP Male Limited Detent RF Connector Engagement Depth 2.79 RF Connector:

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
