SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable
SMA Male Stainless Steel RF Connector for 2#Semi-rigid/flexible Cable
The SMA series represents a type of compact, high-frequency RF coaxial connector that is engineered and manufactured in accordance with the MIL-C-39012 specification. Distinguished by its small size, broad bandwidth, and superior electrical performance, the SMA connector is extensively utilized across various sectors of microwave communication and microwave measurement equipment. The high-performance connectors produced by our company are capable of supporting frequencies up to 20GHz.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | DC~18GHz | ||
| Rated Voltage | 335VRMS* | ||
| Dielectrics Voltage-resistance | 1000VRMS* | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Copper Alloy Gold plated | |
| Female | Beryllium Bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Nickel plated | ||
| Shell and other Metal Parts | Copper Alloy Gold Plated | ||
| Stainless Steel Passivization | |||
| Crimping Sleeve | Copper Alloy Nickel plated | ||
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| Tightening torque of connection | 0.79－1.13N .m | ||
Advantages:
1.Small Size: SMA connectors are renowned for their compact design, making them suitable for use in space-limited electronic devices.
2.Broad Bandwidth: SMA connectors are designed for RF connections in electronic systems operating at frequencies up to 18 GHz or even higher, making them applicable for a variety of high-frequency applications.
3.Reliable Connection: They utilize a threaded connection method, ensuring stability and reliability of the connector.
Interface Dimentions:

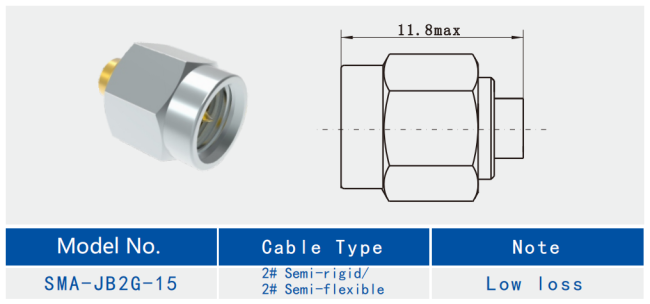

Outline Drawing:(mm)
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
Due to their small size, broad bandwidth, reliable connection, and versatile forms, SMA connectors have become an indispensable component in RF and microwave equipment.
Related Products:
SMA Male Gold Plated RF Connector For 2#Semi-rigid/flexible Cable
| Model No. | Note |
| SMA-JB2D | Solder, Thread Sleeve Removable |
| SMA-JB2DG | Solder,Thread Sleeve Removable,SS Thread Sleeve |

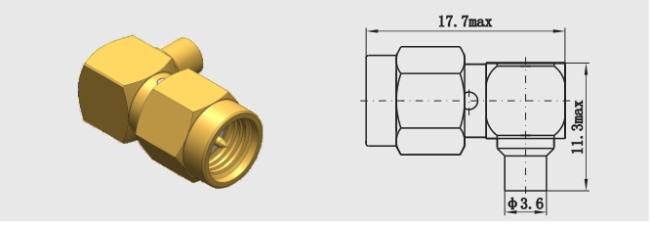

SMA Male Gold Plated right angle RF Connector For 2#Semi-rigid/flexible Cable
| Model No. | Note |
| SMA-JWB2-1 | Solder |
NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
