Straight Stainless Steel SMA Male RF Connector For CXN3507 / MF363A Cable

Stainless Steel SMA Male RF Connector for CXN3507/MF363A Cable

SMA type is a widely used RF coaxial connector characterized by its small-sized threaded coupling. It has a characteristic impedance of 50 ohms and is known for its wide frequency range, superior performance, and high reliability. These connectors are employed to connect RF cables or microstrip lines in the RF circuitry of Wireless Local Area Network (WLAN) systems, control programs, microwave equipment, and digital communication systems. The frequency range can extend up to 18 GHz when using semi-rigid or semi-flex cables.

Features:

1.Ultra-miniature design: As an ultra-miniature coaxial cable connector, SMA is advantageous in size, making it suitable for applications where space is limited.
2.High-frequency applications: SMA connectors are commonly used in electronic systems operating at frequencies up to 18 GHz or even higher, making them popular for high-frequency RF connections.
3.Versatile connection types: SMA connectors come in male and female versions, as well as right-angle and straight configurations, along with panel-mount options to meet various connection requirements.
4.Hexagonal interface: The external mating interface of the SMA connector is threaded and hexagonal in shape, allowing the use of a wrench for tightening to ensure a secure connection.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

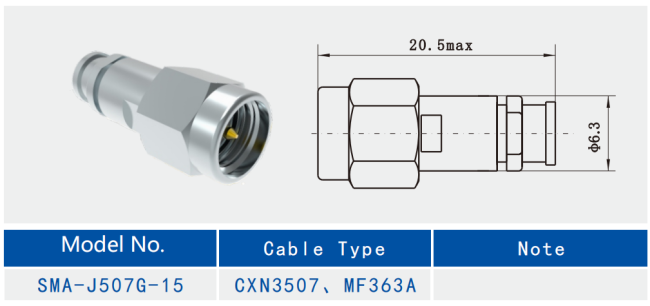

Detailed Drawing

Application:

SMA connectors are widely used in the RF and microwave fields due to their compact design, high-frequency signal support, variety of types, and good environmental adaptability.

Product Cataloge:

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
