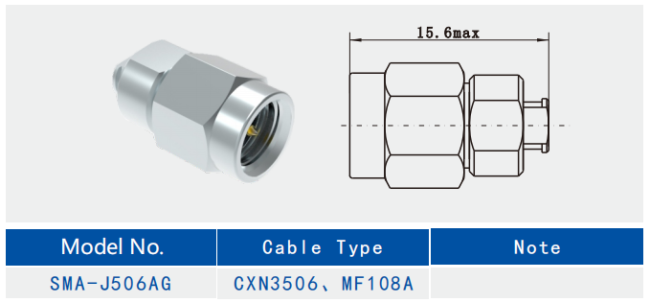

SMA Male Nickel-plated Straight RF Connector For CXN3506/MF108A Cable

SMA Male Nickel-plated Straight RF Connector for CXN3506/MF108A Cable

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with the MIL-C-39012 standard. It boasts several advantages such as its small size, broad frequency range, superior mechanical and electrical performance, and high reliability. It is among the most extensively used RF coaxial connectors. These connectors are commonly employed in microwave communication systems, microwave measurement apparatuses, and various other domains. Our company has developed this series of high-performance connectors that are capable of operating at frequencies up to 20GHz.

Features:

1. Size: SMA connectors are part of the Subminiature version A (SMA) category, developed in the 1960s with dimensions specified in MIL-STD-348.
2. Design Purpose: Originally designed for 12 GHz applications, modern versions of SMA connectors can handle frequencies up to 27 GHz for precision types and typically cover a frequency range of DC to 18 GHz for standard types.
3. Connection Type: SMA connectors use a screw-type connection that provides a secure mating and contributes to the durability and repeatability of the connector.
4. Versatility: SMA connectors are available in right-angle and straight configurations, with options for flange mounting or panel-through mounting, and come with crimp or solder contacts to suit various application requirements.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.
