SMP Female Right Angle 2-hole Flange RF Connector For CXN3506/MF108A Cable
SMP Female Right Angle 2-hole Flange RF Connector for CXN3506/MF108A Cable
SMP is a subminiature push-on or snap coupling RF coaxial connector characterized by its small size, light weight, and excellent seismic performance with a wide operating bandwidth. It can handle frequencies up to 30GHz, while our SMP connector product can achieve 40GHz. The plug comes in three interface forms: full detent, limited detent, and smooth bore (including with braking).
Electrical Characteristics:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits:
1. Versatile Interface Options: SMP plugs offer various interface forms such as full detent, limited detent, and smooth bore (including with brakes) to accommodate different connection needs.
2. Multiple Mounting Options: SMP connectors provide PCB mounting, cable mounting, and in-series adaptors, offering flexible interconnection solutions for board-to-board, blind mating, and rack-and-panel applications.
3. Maintain Packaging Density: The design of SMP connectors helps maintain connectivity in applications requiring high-density packaging.
4. High Reliability Modular Integration: They are suitable for installation situations demanding high reliability in modular integration.
Applications:
1. Instrumentation: Laboratory instruments, precision measurement devices, and other research equipment requiring accurate signal transfer might also utilize SMP connectors.
2. Consumer Electronics: Some high-end consumer electronics, such as digital cameras, high-performance remote controls, and advanced audio/video equipment, may use SMP connectors for high-speed data transmission.
3. Automotive Electronics: With advancements in automotive technology, SMP connectors may be used in vehicle communication systems and navigation devices.

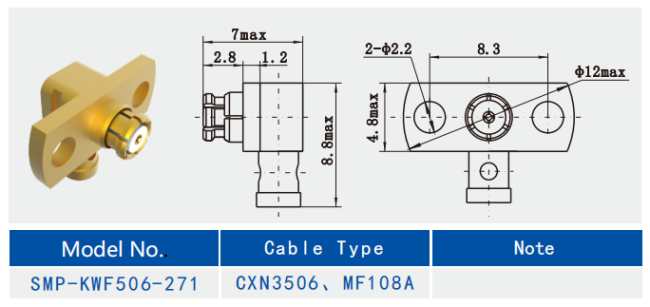

Outline Drawing and Picture of
SMP Female Right Angle 2-hole Flange RF Connector for CXN3506/MF108A Cable:
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
