SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
The SSMP interconnect system utilizes a floating female-to-female adapter, commonly known as a "bullet," to facilitate the stacking of boards equipped with an SSMP male PCB connector. The robust construction and capacity to tolerate radial and axial misalignment enable a blind-mate interconnect solution that can endure numerous mating/unmating cycles without any deterioration in electrical performance.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
1. High-Performance Computing (HPC): For HPC applications requiring large amounts of memory and high-speed data access, SSMP connectors offer an efficient way to configure high-capacity memory solutions.
2. Industrial and Medical Devices: In space-constrained industrial and medical applications, SSMP connectors help designers integrate more functionality into a smaller space while maintaining reliability and durability.
3.Telecommunications Equipment: Wireless and wired communication equipment can use SSMP connectors to increase spectral processing capabilities and signal processing abilities, supporting more complex communication protocols and higher data transfer speeds.

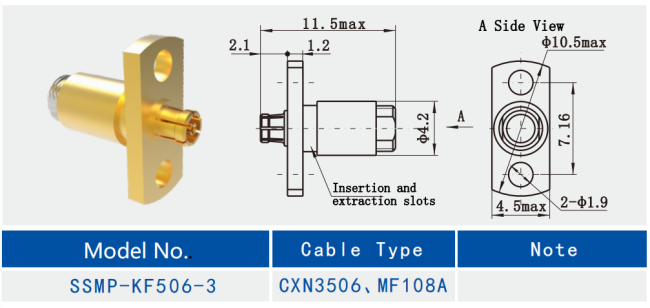

Detailed Drawing
Application:
1. Embedded Systems: In embedded systems, SSMP connectors can be used to increase I/O capabilities, enabling the system to handle more input/output operations and improve overall performance.
2. Storage Solutions: In the storage domain, SSMP connectors can be used to connect more storage modules, thereby increasing storage capacity and access speeds.
