SMA Male Brass Gold Plated RF Coaxial Connector for SFF-50-1 Cable
SMA Male Brass Gold Plated RF Coaxial Connector for SFF-50-1 Cable
The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012.
It boasts several advantages such as its small size, wide frequency range, excellent mechanical and electrical performance, and high reliability. It is the most extensively used RF coaxial connector. It has widespread applications in microwave communication and microwave measurement equipment, among other areas. The series of high-performance connectors developed by our company can handle frequencies up to 20GHz.
Electrical Specification :
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Environmental Specification:
| Operating Temperature | -40 to +85Deg C |

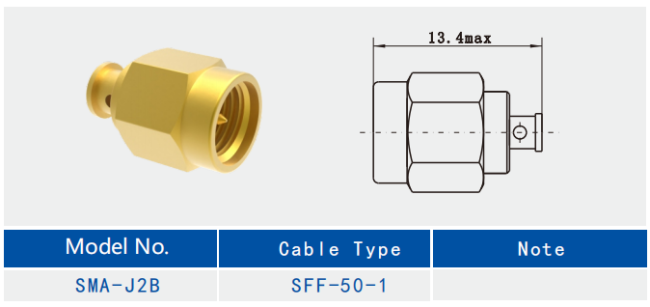

Product Detail of SMA Male Brass Gold Plated RF Coaxial Connector for SFF-50-1 Cable:
Features of SMA RF Connector:
1. Standardization: SMA connectors follow the MIL-C-39012 standard, a military standard set for the U.S. Department of Defense, ensuring product quality and consistency.
2. Compatibility: While SMA is a standard, there can be minor variations between SMA connectors produced by different manufacturers, so compatibility issues should be considered in practical use.
3. Environmental Adaptability: They are generally capable of withstanding a certain range of temperature variations and environmental conditions, making them suitable for both indoor and outdoor environments.
Application:
1. RF Shielded Enclosures and Test Fixtures: In applications where RF interference needs to be prevented, SMA connectors can be used to connect equipment inside shielded enclosures with external devices.
2. Directional Couplers and Power Splitters: Where signals need to be distributed to different paths or where signal power measurement is necessary, SMA connectors can be used to connect these critical RF components.
3. Semiconductor and IC Testing: During the testing of semiconductor devices and integrated circuits, SMA connectors can be used to route test signals to the chips under test.
