SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable
SSMA Female Gold Plated Brass RF Coaxial Connector for CXN3506/MF108A Cable
The SSMA Series RF coaxial connector is a miniaturized derivative of the SMA connector, distinguished by its compact size, broad frequency range, and high dependability. It has widespread application in sectors such as aviation, aerospace, and microwave communication, among others.

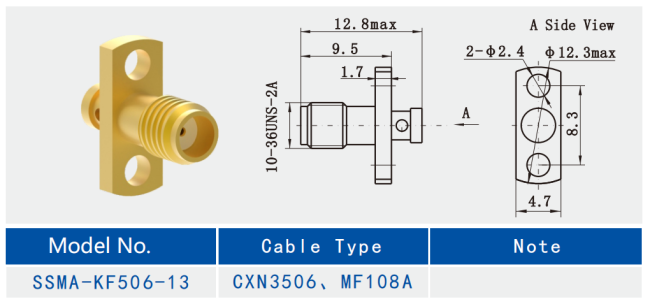

Outline Drawing:
Note:The specific data of the model are based on the data in the product specification sheet.
Specifiacation of SSMA Rf Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Key Features:
1. Good Electrical Performance: They feature low return loss and low insertion loss, ensuring clear signal transmission.
2. Physical Size: SSMA connectors are physically small, facilitating their use in compact designs.
3. Compatibility: SSMA connectors are usually used with 50-ohm coaxial cables and can be compatible with other types of small RF connectors.
Application:
1. Microwave Communications: In microwave links and wireless infrastructure, SSMA connectors are used to connect components sending and receiving signals.
2. Instrumentation and Control Systems: Sensors and actuators used in industrial automation and process control may utilize SSMA connectors.
3. GPS Applications: Antenna connections in Global Positioning System (GPS) devices often use SSMA connectors.
NOTE:
We have over 10,000 types of SSMA Connectors Adapters, if the connector you are using is not found, please contact us with your details.
