High Performance 110GHz Stainless Steel Male to Female RF Connector Adapter

High Performance 110GHz Stainless Steel Male to Female RF Connector Adapter

The 1.0 series connector is a high-performance millimeter wave connector designed for use in high-frequency applications. It can handle frequencies up to 110GHz, making it ideal for millimeter wave communication and radar systems. This connector features an air interface threaded connection, ensuring stable and reliable signal transmission. Its compact size and lightweight design make it easy to integrate into various systems, while its ultra-high frequency capabilities allow for efficient signal transfer. Overall, the 1.0 series connector is a versatile and reliable choice for high-frequency applications.

Specifiacation:

Feature

1. Design Structure
* Diverse port forms: The 1.0mm RF coaxial connectors are available in various forms, such as 1.0mm-1.0mm, 1.0mm-1.85mm, etc., offering a wide selection to meet different testing equipment needs.
* Challenges and innovations in diameter reduction: The design of the connector involves significant challenges in dimensions, materials, and machining, such as extremely thin walls and strict tolerance requirements, reflecting the use of high-precision manufacturing technology.

2.Precision Manufacturing
High-precision processing: From simulation-optimized design to precision manufacturing, such as joint simulation optimization design and precision machining of the waveguide cavity and transition section, showcasing the significant impact of manufacturing processes on performance.

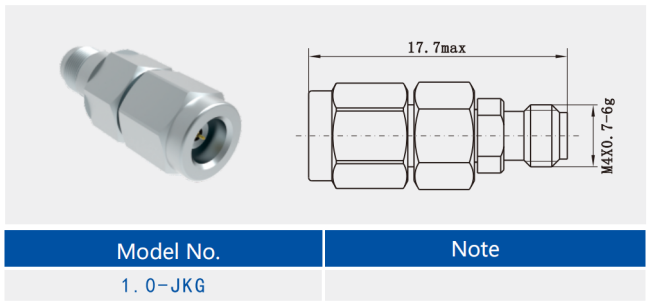

Outline Drawing(mm) and Picture of High Performance 110GHz Stainless Steel Male to Female RF Connector Adapter

Application:

1. Applications in High-Frequency Link Testing
* Ensuring signal transmission quality: Within high-frequency links, the role of the connector is crucial. It acts as a bridge between the device under test (DUT) and the testing instrument, ensuring high-quality signal transmission in the link .
* Reducing system complexity: Using a 1.0mm RF coaxial connector can simplify the configuration of testing equipment, reducing internal cross-connections and uncertainties, thereby optimizing the testing process and improving efficiency .

2. Microwave Millimeter Wave System Testing
* Supporting a wide range of testing needs: Suitable for testing needs from DC to 110GHz, covering the most commonly used sizes in microwave and millimeter wave systems such as 3.5mm and 2.92mm, providing great flexibility and a wide range of applications .
* Improving testing accuracy and efficiency: With low reflection and high repeatability, the 1.0mm connector can effectively reduce measurement errors and ensure the accuracy of test results

Product Cataloge:

Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
