2.4 Male Right Angle Stainless Steel Brass Material RF Coaxial Connector
2.4 Male Right Angle Stainless Steel Brass Material RF Coaxial Connector
The 2.4mm series connector is a high-performance millimeter wave connector engineered for operation up to 50GHz, employing an air interface and a threaded connection. This connector is distinguished by its compact size, low weight, high-frequency operation, and dependable linkage. It is commonly utilized in high-frequency microwave measurement and millimeter wave applications.
Outline Drawing of 2.4 Male Right Angle Stainless Steel Brass Material RF Coaxial Connector
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC～50GHz | |||
Rated Voltage | 170VRMS (Maximum sea-level) | |||
Dielectrics Voltage-resistance | 500VRMS (Maximum sea-level) | |||
Insulation Resistance | ≥5000MΩ | |||
Contact Resistance | Outer conductor | ≤2mΩ | ||
Center conductor | ≤3mΩ | |||
VSMR | ≤1.05+0.005f | |||

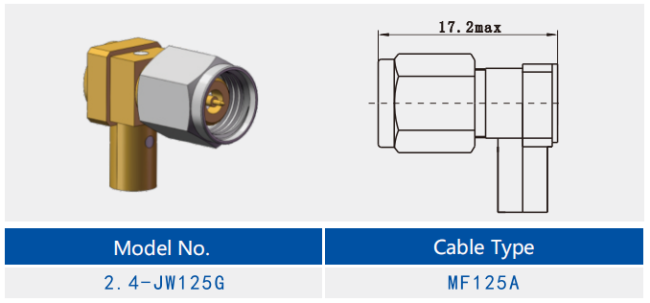

Detailed Drawing of 2.4 Male Right Angle Stainless Steel Brass Material RF Coaxial Connector
Features
Structurally, the 2.4mm connector is compatible with the 1.85 series connectors, meaning it can be interchangeably used with other existing connectors in practical applications, enhancing system flexibility and compatibility. This compatibility not only reduces the cost of equipment upgrades but also provides users with diverse options .
Advantages
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application
The 2.4mm connector utilizes air as the dielectric, offering excellent electrical performance. Air insulation reduces signal loss during transmission while enhancing connection stability and durability . These characteristics make it widely used in measurement systems requiring high precision and reliability, such as in microwave measurement instruments and high-performance testing equipment, where the 2.4mm connector can provide precise signal transmission.
Although there are fewer manufacturers of 2.4mm connectors compared to Type K connectors and they are more expensive, their advantages in specific applications such as millimeter-wave communications and precision measurement are irreplaceable . This connector is compatible with the 1.85 series connectors, meaning it can be interchangeably used with other existing connectors in practical applications, enhancing system flexibility and compatibility.
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
