2.4 Milinetre Wave Female Stainless Steel RF Coaxial Connector with Microstrip
The 2.4 series connector is a high-performance millimeter wave connector designed for frequencies up to 50GHz, featuring an air interface with a threaded connection. It is characterized by its small size, lightweight, high-frequency capability, and reliable connectivity. These connectors are widely used in high-frequency microwave measurements and millimeter wave applications.
Specification of 2.4mm RF Connector:
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC～50GHz | |||
Rated Voltage | 170VRMS (Maximum sea-level) | |||
Dielectrics Voltage-resistance | 500VRMS (Maximum sea-level) | |||
Insulation Resistance | ≥5000MΩ | |||
Contact Resistance | Outer conductor | ≤2mΩ | ||
Center conductor | ≤3mΩ | |||
VSMR | ≤1.05+0.005f | |||

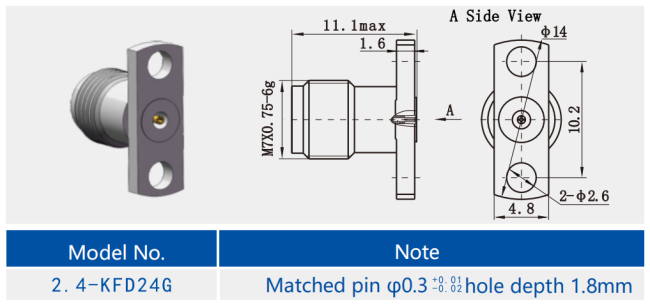

Detailed Drawing of 2.4mm RF Connector:
Features:
When selecting and using the 2.4mm microstrip RF connectors, it is important to pay attention to practical details such as avoiding the use of pliers to secure the connector to prevent damaging the threads; and covering the connector with a protective cap when not in use to prevent thread wear or dust contamination. Proper operation and maintenance can not only extend the lifespan of the connectors but also ensure the stable operation of the system.
With its compact design, high-frequency performance, and wide range of applications, the 2.4mm microstrip RF connector has become an indispensable part of modern communication technologies. As technology advances, the application fields of these connectors will expand further, and their performance will continue to improve to meet the needs of future faster and larger capacity communication systems.
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
The 2.4mm microstrip RF connectors also play an important role in scientific research. Many research institutions rely on these high-performance connectors to ensure the accuracy and repeatability of experiments when conducting advanced communication technology studies. This is particularly true in fields such as physics, electronic engineering, and materials science where the requirements for connector performance are especially stringent.
To extend their service life and ensure the quality of signal transmission, attention should be paid to some operational details during use. For example, avoid using excessive force when connecting and disconnecting to prevent damaging the threads; and when the connectors are not in use, they should be covered with protective caps to prevent dust and wear. Proper maintenance and operation can not only extend the lifespan of the connectors but also significantly enhance the stability and reliability of the entire system.
