2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel

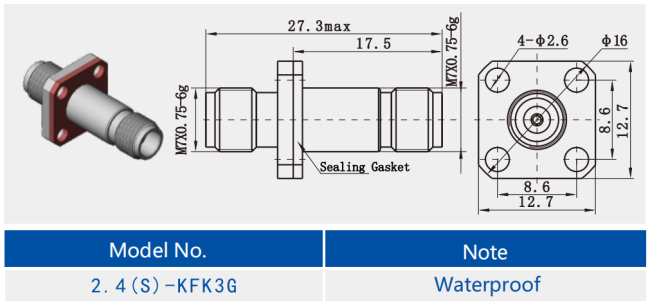

Detailed Drawing (mm):

Features:
 1. Wide Frequency Range: Supporting a frequency range from DC to 50GHz, this adapter covers a wide range of wireless communication bands, including many microwave and millimeter wave applications. Such broadband capabilities make it an ideal choice for a variety of high-frequency applications.
2. Low Standing Wave Ratio: A low standing wave ratio indicates that the adapter has excellent impedance matching and minimal signal reflection within the specified frequency range. This is particularly important for maintaining signal quality and maximum transmission efficiency in the system.
3. High Plug Retention: Thanks to its superior structure and materials, the 2.4mm waterproof RF adapter can withstand up to 3000 plugging and unplugging operations, far exceeding the durability standards of ordinary connectors. This makes it especially useful in situations where the connection configuration needs to be changed frequently.


Advantages :

Application:
1. Data Transmission: For application scenarios requiring fast, large-scale data transmission, such as aerospace equipment, the 2.4mm waterproof RF adapter provides an efficient and reliable connection method. Its design ensures stable performance in extreme environments, whether in high vibration or temperature fluctuations.
2. Test and Measurement Equipment: In the field of testing and measurement, this type of adapter is commonly used to connect various devices to ensure the highest signal integrity and testing accuracy. For example, in the characteristic testing of microwave devices, using the 2.4mm waterproof RF adapter can reduce signal loss and reflection, thereby improving the accuracy of test results.

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
