K2.92 Male Stainless Steel RF Coaxial Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable

                  K2.92 Male Stainless Steel RF Coaxial Connector for 1#Semi-rigid/Semi-flexible Millimetre Wave Cable

 The high-precision 50Ω coaxial 2.92 mm (female) connectors are designed for general-purpose RF and microwave applications. These high-performance connectors are widely used in various test and measurement environments, from cellular to satellite communications, ensuring proper equipment and cable interconnect matching. Manufactured from durable stainless steel, these connectors are built to endure repeated usage. They are characterized by an air dielectric and a low-loss plastic center conductor support.

Features:

1. Appearance and Structural Features:
The K2.92 connector gets its name from the inner diameter of the external conductor, which measures 2.92mm.
This connector uses an air dielectric to help improve transmission efficiency, especially at high frequencies.
Design-wise, the K2.92 connector has a structure similar to SMA and 3.5mm connectors but is more compact and suited for higher frequency applications.
2. High-Frequency Performance:
The K2.92 connector is designed to support operational frequencies of up to 40GHz, covering the needs of the millimeter wave band.
Its optimized design ensures that the connector maintains a low Voltage Standing Wave Ratio (VSWR) and low insertion loss at frequencies up to 40GHz, significantly enhancing transmission quality and efficiency.

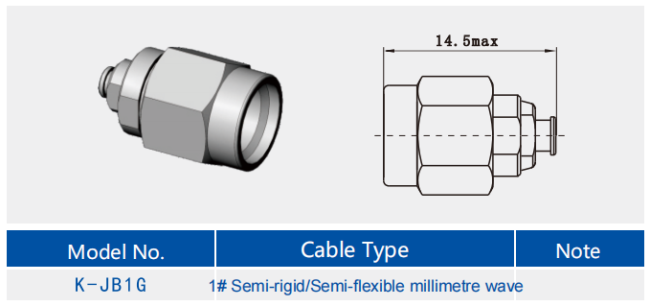

Outline Drawing(mm):

Specification (mm):

Note:The specific data of the model are based on the data in the product specification sheet.

Application:
1. Applications in Communications:
In modern communication technology, the demand for high-frequency signal transmission is continuously increasing, especially in the millimeter wave band. The K2.92 connector can operate up to 40GHz, covering the entire 8mm band.
With the commercialization of 5G technology and the exploration of future 6G communication technologies, the use of K2.92 connectors in base station construction, network equipment, and satellite communication systems is becoming more widespread. Its superior electrical performance and mechanical properties ensure high data rates and low latency.
2. Applications in Testing and Measurement:
The K2.92 connector plays a key role in various high-performance testing instruments and measurement equipment. For example, in network analyzers, spectrum analyzers, and signal generators, this connector is used to transmit precise measurement signals. For research and development engineers, the K2.92 connector is the first choice for connecting test boards to other experimental devices when conducting millimeter wave technology research. They also show their importance in terahertz research and material testing.
