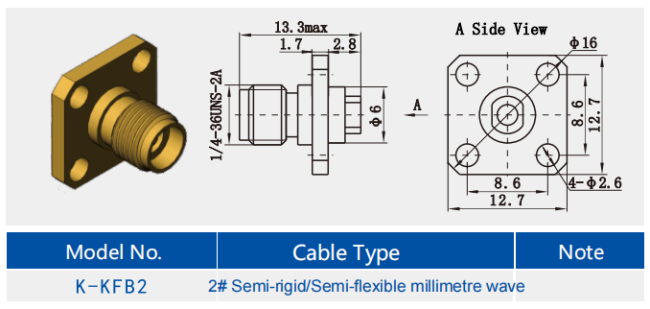

K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable
K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable
These K-type (2.92mm) MMW connectors utilize an air interface, characterized by its compact size, lightweight, and reliable connections.
A high-precision 50Ohm coaxial adapter, transitioning from 3.5mm to 2.4mm, serves a wide range of general RF and microwave applications. These high-performance connectors are employed in various test and measurement scenarios, ranging from cellular to satellite communications, ensuring accurate matching of equipment and cable interconnections. Crafted from sturdy stainless steel, the connector is built to endure repeated usage. It features an air dielectric and a central conductor support made of low-loss plastic.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤1.25 |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing |
Brass, Gold Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
1. High-Frequency Performance
Low Insertion Loss and Low VSWR: Leveraging the advantages of air transmission lines, the K2.92mm connector is optimized for Voltage Standing Wave Ratio (VSWR) and insertion loss, ensuring signal transmission stability and efficiency.
2. Structural Design
Compact Size: The small size and light weight of the K2.92mm connector facilitate installation and use in limited spaces, meeting the needs of portable devices and millimeter-wave systems.
Application:
1. Radar Engineering:
The K2.92 connector is extensively used in radar systems where high precision and high-frequency transmission performance are required to detect and locate objects. With a operating frequency range up to 46GHz, it supports the high-frequency signal demands of modern radar technology
2. Electronic Countermeasures:
Electronic countermeasure systems require connectors that can operate stably even in high interference environments. The high performance of the K2.92mm connector ensures signal reliability and integrity in electronic warfare.
The compact design of this connector is ideal for portable electronic countermeasures equipment such as jammers and signal analyzers.
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
