2.4mm Hermetically Seal Brass Female Flange Mount RF Coaxial Connector
2.4mm Hermetically Seal Brass Female Flange Mount RF Coaxial Connector
2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high-precision 50 Ohm coaxial 2.4mm connectors are suitable for a wide range of general-purpose RF and microwave applications. These connectors, known for their high performance, are commonly used in various test and measurement scenarios, including cellular and satellite communications, to ensure proper equipment and cable interconnection matching. Made from durable stainless steel, these connectors are built to endure repeated usage. They are designed with an air dielectric system and incorporate a low-loss plastic center conductor support.

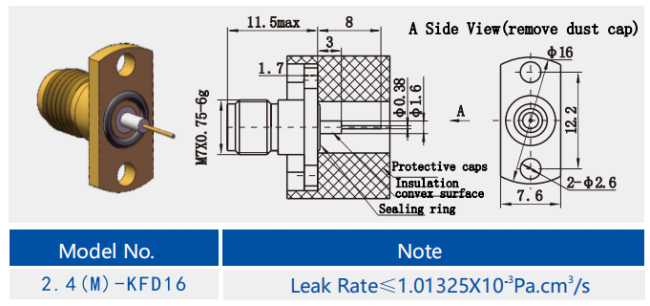

Outline Drawing of 2.4mm RF Coaxial Conector:(mm)
Specification of 2.4mm RF Coaxial Conector:
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Interface Dimentions:
Features:
1. High-Frequency Range:
Designed for high-frequency applications, the 2.4mm connectors operate within the frequency range of DC to 50 GHz . This enables them to support a variety of broadband transmission needs, such as satellite communications and high-frequency network analyzers.
They utilize an air dielectric interface, effectively reducing signal loss during transmission, thus maintaining high performance .
2. Compact Design:
The small size of the 2.4mm connectors, with an outer conductor diameter of just 2.4mm , makes them suitable for space-constrained applications and integrable within compact system designs.
Their lightweight nature facilitates easy portability and handling, particularly suited for measurement equipment that requires frequent assembly and disassembly .
3. Mechanical Durability:
Made from stainless steel or brass with a gold-plated finish, 2.4mm connectors ensure good mechanical strength and corrosion resistance . They can withstand up to 500/1000 mating cycles .
Equipped with a self-alignment feature that protects the female socket, this design prevents the damage that common SMA and 3.5mm connectors might experience during connection .
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
2.4mm connectors, with their high-frequency range, compact design, mechanical durability, excellent electrical performance, and extensive industry standard compatibility, have become an indispensable key component in millimeter-wave instruments and systems. For applications requiring high-frequency and precise connections, 2.4mm connectors offer an efficient and reliable solution.
