High Performance K2.92 Series Male Stainless Steel RF Coaxial Connector Plug

Our 50Ohm coaxial 2.92 mm (Female) connectors are meticulously engineered to provide unwavering precision and dependability, making them the premier choice for a broad spectrum of RF and microwave applications. Expertly designed to cater to a myriad of test and measurement requirements—spanning from cellular to cutting-edge satellite communications—these connectors guarantee an impeccable match between your equipment and cable interconnects. Fabricated from robust stainless steel, these connectors are built to withstand the rigors of frequent use. They feature an advanced air dielectric design, coupled with a center conductor support made from a material that minimizes signal loss, ensuring uncompromised performance and extended durability

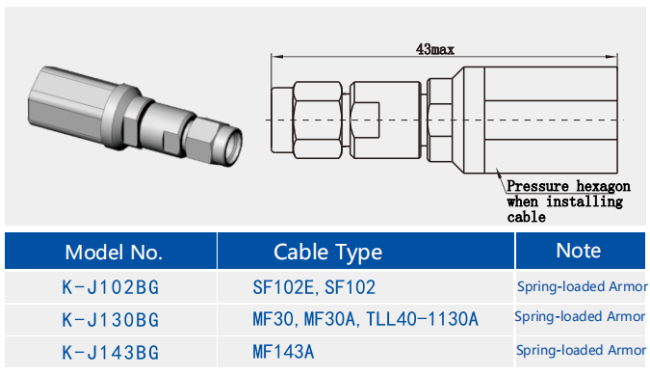

Outline Drawing  ​:(mm)

Note:The specific data of the model are based on the data in the product specification sheet.

Specification ​:(mm)

Features:

1. Consistent Impedance Matching
Impedance Matching Performance: The internal structure and material selection of the K2.92 millimeter connector guarantee highly consistent impedance matching, which is beneficial for high-quality signal transmission. Impedance matching is a critical parameter in assessing connector performance, affecting signal reflection and loss .
2. High Number of Mating Cycles
Durability: The threaded structure design and high-quality materials of the K2.92 millimeter connector allow it to withstand multiple plugging and unplugging operations without damage. This demonstrates excellent reliability and durability of the K2.92 millimeter connector .

Application :

Test Equipment
Precision Measurement: In test and measurement equipment such as network analyzers and spectrum analyzers, the K2.92 connector utilizes its low insertion loss and high impedance consistency to provide accurate signal measurement and analysis .
Operational Stability: Due to the high durability design of the K2.92 connector, it can be plugged and unplugged multiple times without damaging its performance, making it particularly outstanding in frequently used test equipment .

Other 2.92mm Male Female RF Connector:

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
