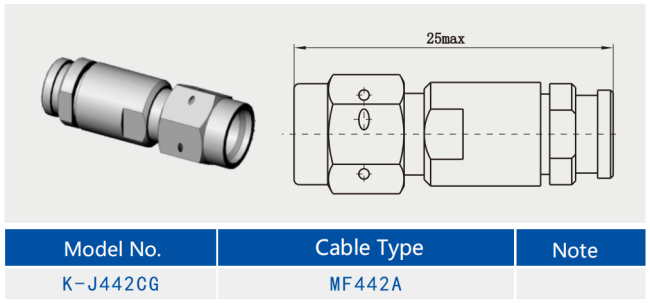

K2.92 Male Stainless Steel RF Coaxial Connector For MF442A Cable Plug

                 K2.92 Male Stainless Steel RF Coaxial Connector for MF442A Cable Plug

The K type, also known as the 2.92 type connector, is a widely used millimeter wave connector with a frequency range of up to 40GHz. It can be interchanged with SMA and 3.5 series products and features an air interface. This series of products offers advantages such as compact size, lightweight design, high-frequency performance, and reliable connections.

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

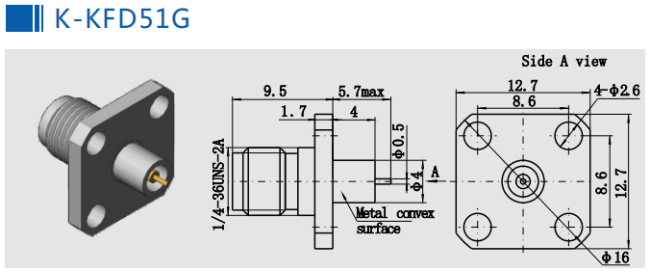

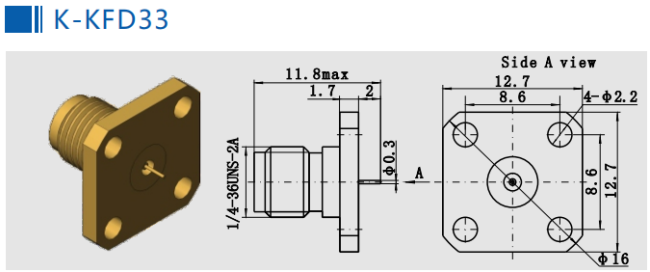

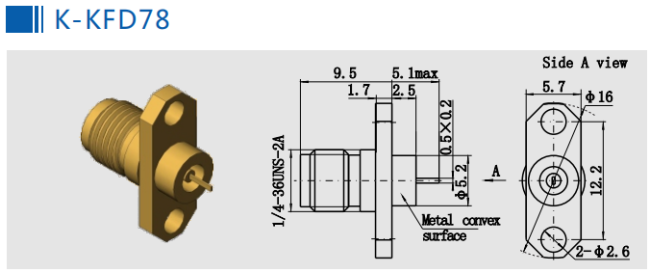

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

1. Interchangeability: The connector is interchangeable with products from the SMA and 3.5mm series. This interchangeability provides users with more flexibility and convenience.

2. Interface Type: It utilizes an air interface, ensuring efficient and stable signal transmission.

Application:

1. Wireless Communication: In high-frequency applications such as wireless base stations, radar systems, and satellite communications, K2.92 connectors are used to connect radio frequency cables and devices to ensure efficient signal transmission.

2. Testing and Measurement Equipment: In network analyzers, spectrum analyzers, and other testing instruments, K2.92 connectors are used to connect the tested equipment and test equipment to ensure accurate measurement results.
