High Performance K2.92 Female Stainless Steel RF Connector for CXN3506/MF108A Cable

The K-type, also known as the 2.92-type connector, is a commonly used millimeter-wave connector with a frequency range of up to 40 GHz. It can be used interchangeably with SMA and 3.5 series products and features an air interface. This series of products offers small size, light weight, high frequency of use, and reliable connection.

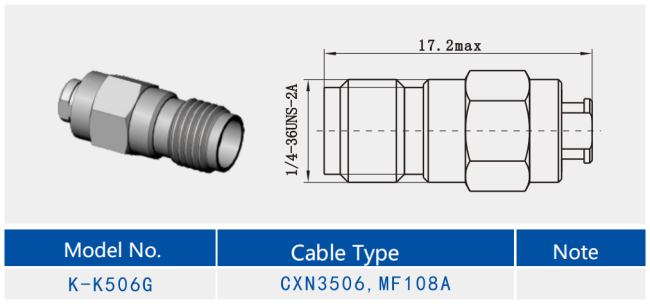

Outline Drawing

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

1. Compact Size: The K2.92 series connectors are designed to be small in size, making them ideal for use in environments with limited space.

2. Lightweight: Due to the use of lightweight materials such as PEI, these connectors are relatively light, facilitating easy transportation and installation.

3. High Frequency: The K2.92 connectors operate over a frequency range from DC to 40GHz, suitable for millimeter-wave devices and systems.

Application:

1. Millimeter-Wave Devices and Systems: Due to its frequency range of up to 40GHz, the K2.92 connector is highly suitable for millimeter-wave devices and systems. These devices include, but are not limited to, radar systems and satellite communication equipment, which all require precise signal transmission at high frequencies.

2. Wireless Communication Base Stations: In wireless communication base stations, especially in 5G and future 6G technologies, there is a high demand for connector performance. The K2.92 connector supports high-speed data transmission and stable signal connections due to its low VSWR (Voltage Standing Wave Ratio) and high reliability.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
