K2.92 Female Stainless Steel RF Connector for CXN3506/MF108A Cable

                             K2.92 Female Stainless Steel RF Connector for CXN3506/MF108A Cable

The K type, also known as the 2.92 type connector, is a commonly used millimeter wave connector with a frequency of up to 40 GHz. It can be used interchangeably with SMA series and 3.5 series products and adopts an air interface. The K type connector features a small size, light weight, high frequency of use, and reliable connection.

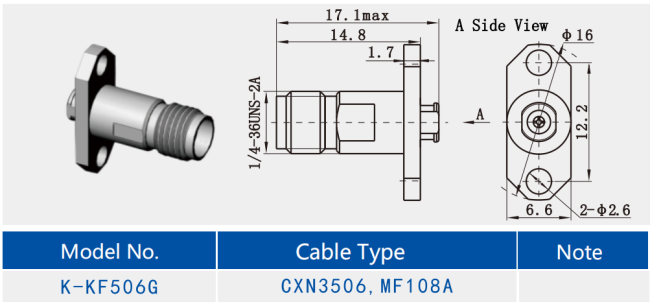

Outline Drawing :(mm)

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector:

2.

3.

4.

Features:

1. Structure and Material:
- The main body is of an integrated design, effectively preventing model leakage.
- The outer conductor is made of stainless steel, enhancing durability and corrosion resistance.
- The center conductor is made of beryllium copper with gold plating, ensuring good electrical performance and long-term stability.

2. Electrical Characteristics:
- The characteristic impedance is 50Ω, suitable for a variety of RF applications.
- The frequency range is wide, from DC to 40GHz, meeting the needs of high-frequency applications.
- Low voltage standing wave ratio (VSWR), less than 1.15 at 40GHz, ensures efficient signal transmission.

Application:

1. Radar Engineering: Due to its high frequency range and low insertion loss characteristics, the K2.92 connector is used in radar systems to transmit high-frequency signals, ensuring the accuracy and reliability of radar equipment.

2. Electronic Warfare: In the field of electronic warfare, K2.92 connectors are used to connect various high-frequency devices to achieve effective electronic interference and anti-interference functions.

3. Satellite Communications: Due to its excellent electrical performance and mechanical properties, the K2.92 connector is used in satellite communication systems to connect antennas and receivers, ensuring stable signal transmission.
