K2.92 Right Angle Brass Female 2-hole Flange RF Connector For CXN3506/MF108A Cable

            K2.92 Right Angle Brass Female 2-hole Flange RF Connector for CXN3506/MF108A Cable

The K type, also known as the 2.92 type connector, is a series of commonly used millimeter wave connectors with a frequency of up to 40 GHz. It can be used interchangeably with SMA series and 3.5 series products and adopts an air interface. The K type connector features a small size, light weight, high frequency of use, and reliable connection.

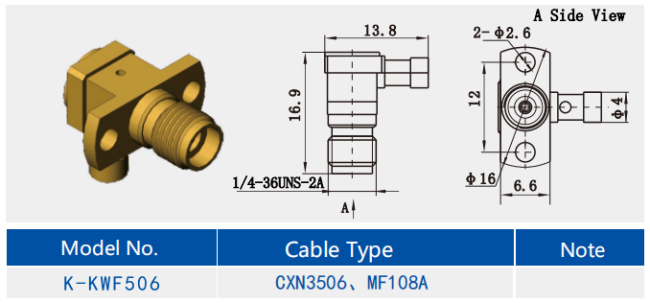

Outline Drawing :(mm)

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

1. Electrical Characteristics:
- The characteristic impedance is 50Ω, suitable for a variety of RF applications.
- The frequency range is wide, from DC to 40GHz, meeting the needs of high-frequency applications.
- Low voltage standing wave ratio (VSWR), less than 1.15 at 40GHz, ensures efficient signal transmission.

2. Mechanical Characteristics:
- High temperature resistance, can withstand temperatures from -55°C to +165°C.
- Low separation force and engagement force, easy to operate and reliable connection.
- Strong durability, can withstand 500 cycles of use.

3. Compatibility and Interchangeability:
- Compatible with SMA, 3.5mm and other connectors, facilitating interconnection between different systems.
- Can be interchangeably plugged with SMA and 3.5mm connectors, improving the universality and flexibility of the equipment.

Application:

1. Test Instruments: In test instruments, K2.92 connectors are used to connect testing equipment and tested equipment, ensuring the accuracy and reliability of test results.

2. Aerospace: K2.92 connectors are widely used in the aerospace field to connect various aviation electronic devices, ensuring the normal operation and safety of the equipment.

3.Wireless Communication: Due to its high frequency range and low insertion loss characteristics, the K2.92 connector is used in wireless communication systems to connect transmitters and receivers, improving signal transmission efficiency.
