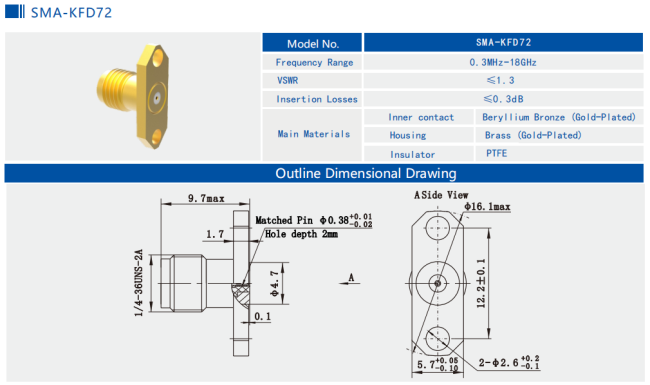

Outline Drawing:(mm)

Features:

1. Precise Mechanical Structure: - The precise structural design ensures that the threaded connection of the connector is tight and reliable, preventing loosening under vibration or shock conditions. Meanwhile, the connector pins and jacks are machined with high precision to ensure good electrical contact. - With certain mechanical strength, they can withstand the mechanical stress during installation and use and are not easily damaged.
2. Strict Quality Control and Inspection: - The production process follows a strict quality management system, and each production step is strictly inspected and controlled to ensure that the quality and performance of the products meet the aerospace standards. For example, the electrical performance, mechanical performance and environmental adaptability of the connectors will be thoroughly tested and verified. - A series of reliability tests, such as temperature cycling test, thermal vacuum test, vibration test, mechanical shock test, etc., will be carried out before leaving the factory to simulate the space environment to evaluate the connectors.

Application:

1. Space probe missions:
Detector internal connection: in deep space detectors, SMA connectors can be used to connect the detector internal communication equipment, scientific instruments, etc., to adapt to a variety of harsh conditions in the space environment, such as high and low temperature changes, vacuum environment, radiation and so on.
Communication connection with Earth: the probe needs to communicate with Earth, and the SMA connector plays a key role in the communication subsystem of the probe to ensure that the probe can transmit the collected data back to Earth in time.
2. Commercial Space Field:
Satellite Internet: In commercial satellite Internet projects, a large number of satellites need to be deployed in space, SMA connectors are used for communication connections between satellites and between satellites and ground gateways to support high-speed data transmission.
Space Tourism Facilities: In future space tourism related facilities, such as communication and entertainment systems inside the space capsule may also need to use SMA connectors to connect related RF equipment.

Product Cataloge:

1.85 series

2.4  series

2.92 series

SMA series

SMP series

SMPM series

Glass Insulator Products

Coaxial Waveguide Adapter

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
