K2.92 Female Flange Stainless Steel RF Coaxial Connector with Microstrip for Communication

                  K2.92 Female Flange Stainless Steel RF Coaxial Connector with Microstrip for Communication

K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

These K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.

The high-precision 50Ohm coaxial connectors with a 2.92 mm female interface are designed for general-purpose use in RF and microwave applications. These high-performance connectors are employed across a wide range of test and measurement scenarios, from cellular communications to satellite communications, ensuring proper matching of equipment and cable interconnects. Made from durable stainless steel, these connectors are built to withstand repeated usage. They incorporate an air dielectric design with a low-loss plastic center conductor support.

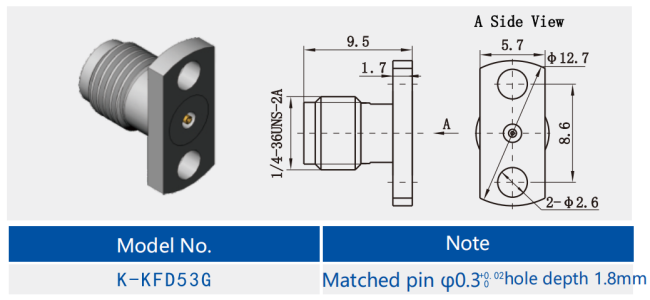

Outline Drawing of K2.92 Female Flange Stainless Steel RF Coaxial Connector with Microstrip for Communication(mm):

Specification of K2.92 Female Flange Stainless Steel RF Coaxial Connector with Microstrip for Communication(mm):

Note:The specific data of the model are based on the data in the product specification sheet.

Features:

1. Electrical Performance:
   • Characteristic impedance: 50Ω, which is a common standard impedance for RF coaxial connectors, and can ensure the stability and matching of signals in the transmission process.
   • Compatibility:
     • Intermateability: it can be interchangeably mated with SMA and 3.5mm connectors, which increases its flexibility and convenience in practical applications. For example, when the corresponding connector is temporarily unavailable, accessories such as adapters can be used to interconnect different series of connectors.
   • Other features:
     • Air medium: adopting air as the transmission medium draws on the advantages of air transmission lines, resulting in low VSWR and low insertion loss.
     • Raised metal grounding ring: 360° metal-to-metal contact can be realized, which enhances the grounding performance and stability of the connector.
     • Temperature adaptability: it can work normally under the ambient temperature from -55℃ to +125℃, adapting to various harsh working environments.

Application:

1. Antenna system:
   • Satellite receiving antenna: Satellite receiving antenna needs to receive weak signals from space, the requirements of the connector are higher. k2.92 mm connector has good electrical performance and mechanical stability, can ensure the satellite receiving antenna and the back-end equipment to connect reliably, reduce the signal transmission loss, improve the quality of the received signal.
   • Radar antenna: The antenna in the radar system needs to transmit high-frequency and high-power signals, and the K2.92mm connector can meet the high requirements of the radar antenna to the connector. It can be used for the connection between radar antenna and signal processing equipment to ensure the stable transmission of radar signals, and has good durability and anti-interference ability in complex environments.
   • Microwave antenna: In the field of microwave communication and microwave remote sensing, microwave antenna is one of the key equipments.K2.92mm connector can be used for microwave antenna feeding system, connecting antenna and RF front-end equipments, and its high-frequency characteristics and low-loss performance can satisfy the demand of microwave signal transmission and ensure the performance of antenna system.
