Brass / Stainless Steel RF Coaxial Connector 50Ω Impedance Aerospace SMA Female 4-hole Flange
Aerospace SMA Female High Performance 4-hole Flange Brass RF Coaxial Connector
The SMA series RF coaxial connectors are compact, high-frequency coaxial connectors designed for use up to 18GHz. They boast a small size, wide bandwidth, exceptional mechanical and electrical performance, and reliable connections. These benefits make them one of the most commonly used RF coaxial connectors, with widespread applications in industries such as aerospace and marine.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | 0.3ZHz-18GHz | ||
| Dielectrics Voltage-resistance | 1000VRMS | ||
| Insulation Resistance | ≥5000MΩ(DC:500V) | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| Material & Mechanical Characteristics | |||
| Fixation of the center contact | ≥26.7 | ||
| Durability | 500times | ||
| Cable Retention | Minimum cable retention force | ||
| Temperature | -55°C~+125°C | ||

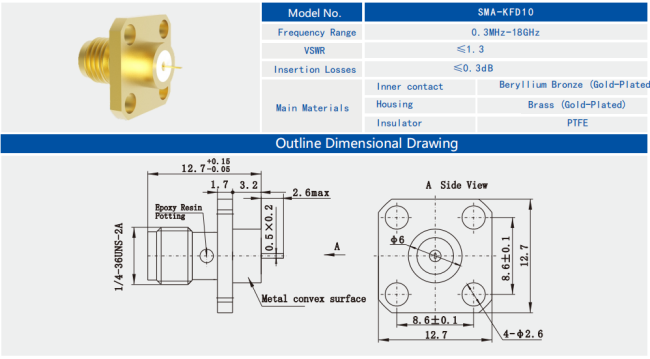

Outline Drawing:(mm)
Features:
- Mechanical Strength: Due to the unique nature of the aerospace environment, these connectors need to have sufficient mechanical strength to withstand the vibration and shock of the launch process.
- Environmental resistance: Aerospace grade RF coaxial connectors need to be able to withstand cosmic rays, solar winds, and other elements of the space environment to keep their performance unaffected.
- Strict Quality Control: From material selection to manufacturing processes to final testing and validation, Aerospace grade RF coaxial connectors follow strict quality control standards to ensure that every product meets the requirements of aerospace applications.
Application:
- Medical field: RF coaxial connectors are used in medical equipment for high-precision signal transmission, such as in imaging equipment and monitoring equipment.
- Industrial automation: In industrial control systems and automation equipment, RF coaxial connectors are used to connect sensors and actuators to ensure the efficient operation of the system.
- Aerospace: RF coaxial connectors are particularly critical in aerospace applications, where they are used in communication systems for aircraft and spacecraft, as well as radar and navigation equipment.
Product Cataloge:
1.85 series
2.4 series
2.92 series
SMA series
SMP series
SMPM series
Glass Insulator Products
Coaxial Waveguide Adapter
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
