N Male Stainless Steel Solder + Clamp RF Coaxial Connector for MF147A/MF147B Cable
N Male Stainless Steel Solder +Clamp RF Coaxial Connector for MF147A/MF147B Cable
N-type connectors are threaded coaxial connectors known for their excellent anti-vibration capabilities and electrical performance, with a typical frequency range of up to 11 GHz. Our N-type connectors can support frequencies up to 18 GHz. They are compatible with various types of RF cables and are commonly used in aviation, aerospace, radar, microwave, digital communications, and test and measurement instruments.
We offer customization for different types of N-type connectors and adapters to meet various customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount options, we can accommodate your specific needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

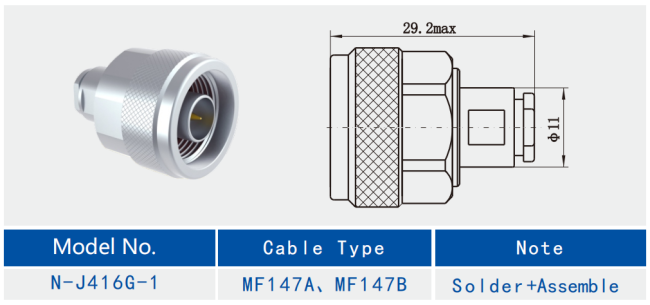

Detailed Drawing
Features:
1. Frequency Range: N-type connectors support signals in the frequency range of 0 to 11 GHz, with enhanced types available up to 18 GHz. this makes it excellent in high-frequency applications and meets the needs of modern communication and radar systems.
2. Impedance Specification: The impedance specification of N connectors is usually 50 ohms, which is one of the most commonly used impedance values in the RF field, helping to ensure the stability and efficiency of signal transmission.
Applications:
1. Base station construction: N-type connectors are used in RF transceiver modules of base stations to ensure the stability and reliability of signal transmission.
2. Microwave transmission: In microwave transmission systems, N connectors are used to connect the antenna with the transmitting/receiving equipment, providing an efficient signal transmission path.
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| MCX/MMCX RF Connector |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
