N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
N-type connectors feature threaded couplings, providing strong anti-vibration capabilities and excellent electrical performance, typically supporting frequencies up to 11GHz. Our advanced models extend this range to 18GHz. The threaded design minimizes noise and effectively withstands shock and vibration. Our LTI N connectors adhere to MIL-C-39012 standards. They are versatile, compatible with various RF cable types, and widely used in aviation, aerospace, radar systems, microwave communications, digital telecommunications, and test and measurement instruments.
We offer customization for various N-type connectors and adapters to meet diverse customer needs, whether you require straight or right-angle configurations, flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Nickel Plated |
| Female | Phosphor Bronze, Nickel Plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel | Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

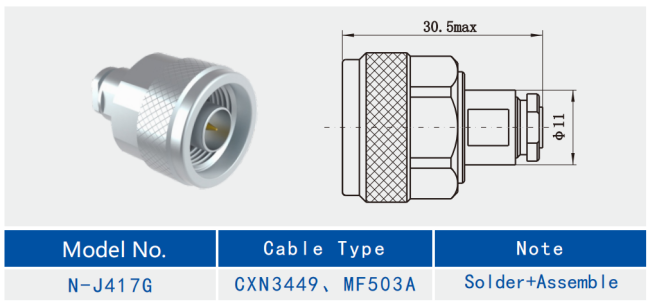

Detailed Drawing
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Features:
1. Interchangeability: N-type connectors can be interchanged with international NG-type similar products, which increases its versatility and flexibility.
2. Application areas: Due to its excellent performance and reliability, N-type connectors are widely used in radar, communications, data transmission and aerospace equipment.
Applications:
RF laboratory: In the RF laboratory, N connectors are used to connect various RF instruments and test equipment to support high-frequency, high-power experiments.
Antenna testing: In antenna testing, N-type connectors are used to connect antennas and test equipment to ensure the accuracy and reliability of test data.
