High Frequency N Female 4-hole Flange Microstrip RF Coaxial Connector
High Frequency N Female 4-hole Flange Microstrip RF Coaxial Connector
N type connectors belong to threaded coupling coaxial connectors, which possess excellent anti-vibration capability and electrical characteristics. Their typical frequency range can reach up to 11 GHz, while ours can even extend to 18 GHz. They are suitable for various types of RF cables and are widely used in fields such as aviation, aerospace, radar, microwave and digital communications, as well as test and measurement instruments.
Moreover, we are capable of customizing different kinds of N type connectors and adapters to meet customers' specific requirements. Whether you need straight or right-angle ones, flange mount or bulkhead mount, we can provide tailored solutions for you.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

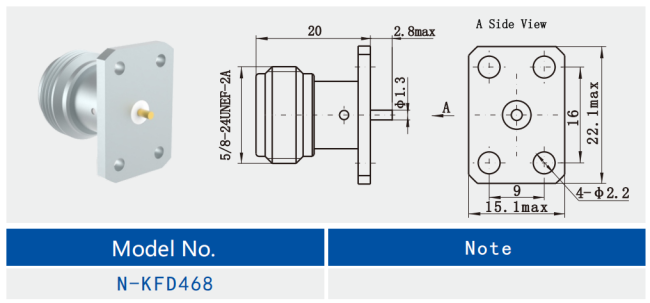

Detailed Drawing
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Features:
1. Connection: Threaded connection, rotatable locking, able to maintain a stable connection under vibration or shock environment, and easy and quick to connect and disassemble.
2. Low Loss: Adopting high quality materials and precise manufacturing process, the signal transmission loss is extremely low, which helps to improve the efficiency and quality of signal transmission.
3. High shielding: The housing is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
Applications:
1. Wireless communication base station: In mobile communication base station, it is used to connect the RF signal transmission between transmitter, receiver, antenna and other equipments to ensure the stable transmission and reception of signals, its high frequency range and low loss characteristics can meet the requirements of base station on signal quality and transmission efficiency.
2. Microwave communication system: For example, in microwave communication system such as microwave relay station and satellite communication ground station, N-type connector can be used to connect various microwave equipments including mixer, up-converter, down-converter, power amplifier, etc., to realize the transmission and processing of microwave signals and to ensure the reliability and stability of the communication link.
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
