TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable
2.TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable
The TNC series represents a threaded adaptation of the BNC connector, characterized by screw threads that facilitate secure mating. These compact, threaded, waterproof connectors maintain a consistent 50-ohm impedance and are designed for operation within the DC to 11 GHz frequency range. Two variants of TNC connectors exist: standard and reverse polarity. While constructed from die-cast and molded materials, making them more affordable and slightly less performant than industrial or high-performance alternatives, they excel in diverse commercial uses. Commonly employed in antenna connections, TNC connectors also find applications in radar systems, wireless communications, and broader industrial sectors. Additionally, reverse polarity and 75-ohm versions of TNC connectors are also accessible.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |

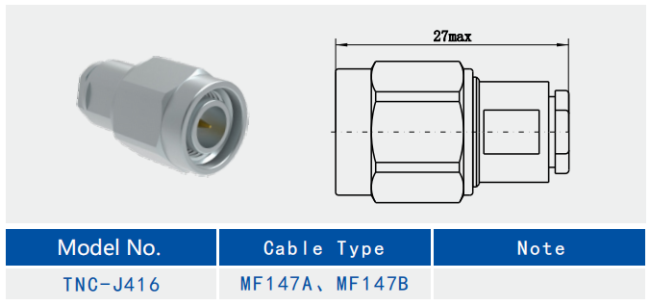

Detailed Drawing
Features:
1. Corrosion resistance and durability: It has corrosion resistance, durability, dustproof and other properties, suitable for outdoor applications, and its material and surface treatment make it able to work stably for a long time in harsh environments.
2. High mechanical strength: usually made of brass, stainless steel and other metal materials, with good mechanical strength, can withstand a certain degree of external force and tension.
Application:
1. Fieldbus connection: In industrial automation control system, TNC cable connector can be used to connect fieldbus devices, such as programmable logic controller (PLC), distributed control system (DCS) and other communication cables, to realize the data transmission between the devices and the interaction of control commands, to improve the degree of automation and efficiency of industrial production.
2. Sensor and actuator connection: Used to connect various industrial sensors and actuators, such as temperature sensors, pressure sensors, motor drives, etc., to transmit the signals detected by the sensors to the control system, and at the same time transmit the control instructions to the actuators, to realize the precise monitoring and control of the production process.
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
