18GHz Frequency RF SMA Female 4 Holes Flange Mount Microstrip Connector Used in Radar, Communications, Electronics
Product Description:
The SMA RF Connector is a high-quality RF coaxial connector designed for various applications in the telecommunications, aerospace, and radar industries. With an impedance of 50 Ohm, frequency can reach up to 18GHz, this connector ensures reliable signal transmission and minimal signal loss, making it suitable for high-frequency applications.
Featuring insulators made of PTFE, the SMA RF Connector offers excellent electrical properties and insulation, ensuring stable performance even in demanding environments. The use of PTFE insulators also enhances the connector's durability and resistance to heat, making it a reliable choice for critical connections.
The Contacts of the SMA RF Connector are made of copper alloy with gold plating, ensuring superior conductivity and corrosion resistance. The gold plating on the contacts enhances signal transmission efficiency and minimizes signal degradation, resulting in reliable and consistent performance over time.
Overall, the SMA RF Connector is a robust RF coaxial connector suitable for a wide range of applications. With its 50 Ohm impedance, PTFE insulators, copper alloy contacts with gold plating, and RoHS compliance, this connector offers high performance, durability, and environmental sustainability.
SMA RF Connector Details:
Product Details:
| Product Name | SMA Female 4-holes Flange Mount Microstrip Connector | ||
| Product Model | SMA-KFD848 | ||
| Technical | Materials & Finish | ||
| Impedance | 50Ω | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 500V | Outer Conductor | Copper Alloy, Gold Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PTFE |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
| Other Index | Frequency can reach up to 18GHz | ||

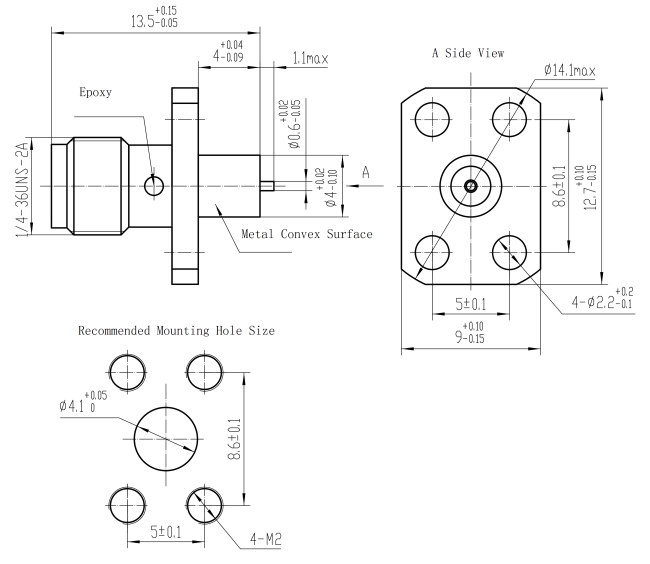

Outline Dimension:
Applications:
SMA-KFD848 RF Connector is a high-quality RF coaxial connector designed for various applications. With its superior performance and reliability, this product is suitable for a wide range of industries and projects.
Product Application:
- High-Quality Requirements Industry: Aviation, naviagtion, radar.
- Telecommunication Systems: The ELT SMA-KFD848 RF Connector is ideal for use in telecommunication systems due to its excellent signal transmission capabilities and durable construction.
- Broadcasting Equipment: Whether it's for radio stations or television broadcasting, this RF connector ensures a stable connection for seamless broadcasting operations.
- Industrial Automation: This RF connector is suitable for various industrial automation applications that demand efficient signal connectivity
Technical Support and After Sales Services:---------------------------------------------------------------
Our Product Technical Support and Services for the SMA RF Connector include expert assistance with installation, troubleshooting, and maintenance. Our team of skilled professionals is dedicated to ensuring that you have a seamless experience with our product.
Packing and Shipping:
Product Packaging:
The SMA RF Connector is carefully packaged in a sturdy box to ensure safe transportation. The connector is secured in place with protective padding to prevent any damage during shipping.
Packaging Details:
- 10pcs/plastic bag; 5/10bags/carton;
- As requirements
Shipping:
We offer worldwide shipping for the SMA RF Connector. Orders are processed promptly and shipped using reliable courier services to deliver your product quickly and efficiently. You will receive a express tracking number to check the status of your package.
- Delivery Time: 3-5 working days, As normal, In stock. Please recheck if need.
- Supply Ability: As requirements
