N Female RF Coaxial Connector 4-hole Flange with Long Microstrip
N Female RF Coaxial Connector 4-hole Flange with Long Microstrip
N-type connectors are threaded coaxial connectors celebrated for their exceptional resistance to vibration and outstanding electrical properties, commonly supporting frequencies up to 11GHz. Our sophisticated N-type connectors expand this capability to 18GHz. These connectors are highly adaptable and compatible with a wide range of RF cable types, making them indispensable in industries such as aviation, aerospace, radar systems, microwave communications, digital communications, and test and measurement equipment. We provide customization services for various N-type connectors and adapters to meet specific customer needs, offering both straight and right-angle configurations, as well as flange mount and bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Gasket | Silicone Rubber | |
| Insulator | PTFE | |
| Durability | 500 Cycles | |

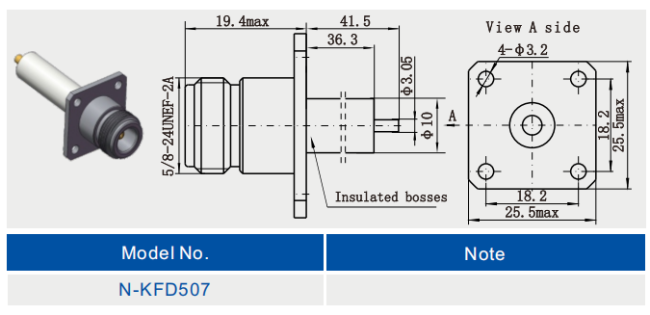

Detailed Drawing
Features:
1. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
2. Strong durability: after special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
Applications:
1. Low loss: the use of high-quality materials and precision manufacturing process, the loss generated in the signal transmission process is extremely low, which helps to improve the efficiency and quality of signal transmission.
2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
3. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
