N Female Waterproof 4-hole Flange RF Coaxial Connector with Microstrip
N Female Waterproof 4-hole Flange RF Coaxial Connector with Microstrip
N type connectors are coaxial connectors with threaded coupling, featuring good anti-vibration capability and electrical characteristics. The applicable frequency ranges up to 18GHz. They can be used with different types of RF cables and are widely applied in aviation, aerospace, radar, microwave and digital communications, test and measurement instruments, etc. We offer customization services for various N type connectors to meet customers' specific requirements.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Detailed Drawing

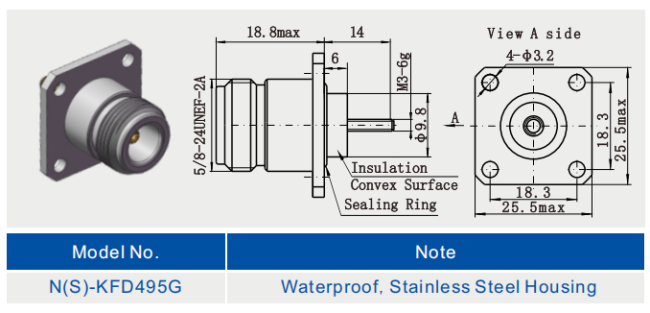

Outline Drawing:
Features:
1. Low loss: the use of high-quality materials and precision manufacturing process, the loss generated in the signal transmission process is extremely low, which helps to improve the efficiency and quality of signal transmission.
2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission and ensure the stability and reliability of the signal.
3. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
Applications:
1. Network analyzers: In test instruments such as network analyzers, N-type connectors are used to connect the RF signal transmission between the device under test and the test instrument. Since network analyzers need to accurately measure various parameters of RF signals, such as amplitude, phase, frequency, etc., the electrical performance of the connector is very demanding.N-type connectors can meet the testing requirements of network analyzers with their low loss, high shielding and good repeatability.
2. Spectrum analyzer: Spectrum analyzer is used to analyze the spectral distribution and power characteristics of RF signals, and N-type connector is used to connect between signal source and spectrum analyzer. The reliable connection of the N-type connector can ensure the accurate transmission of the signal, thus obtaining accurate spectrum analysis results.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
