15 Pins Gold Plating J30J Micro Rectangular Connector Male Plug With Wire Length 50cm/500mm Use For Electronics Industry
Product Description:
The J30J Series Connector is a high-quality product designed for various applications that require reliable connections. With a contact termination of crimp, this connector ensures secure and efficient connectivity. The connectors have 9-pin, 15-pin, 21-pin, 25pin, 31-pin, 37-pin, 51 pin, 66-pin, 74-pin, 100pin configuration provides ample options for different connection requirements, making it versatile and adaptable to various setups.
One of the key features of the J30J Series Connector is its center conductor, which is made of copper alloy and coated with gold plating. This construction enhances conductivity and ensures a stable connection, reducing the risk of signal interference or loss. The use of high-quality materials also contributes to the connector's durability and longevity.
Operating in a wide temperature range of -55℃ to +125℃, the J30J Series Connector is suitable for both extreme and standard operating conditions. This allows for reliable performance in various environments, making it a dependable choice for a wide range of applications.
The following picturer of 31 pins micro-d connector's male plug with wire length 1.5m, 150cm, 1500mm for your reference.
Technical Data:
| Product Model | J30J-15TJL-500 (15pin, male plug, wire length 500 mm) | ||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
The outline drawing of J30J Micro Rectangular Connector Male Plug with wire length 50cm as following:
Applications:
J30J Series Connector provides a compact and efficient solution. Its design allows for high-density connections in tight spaces, making it suitable for industries such as aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Customization:
Product Customization Services for J30J Series Connector:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
Packing and Shipping:

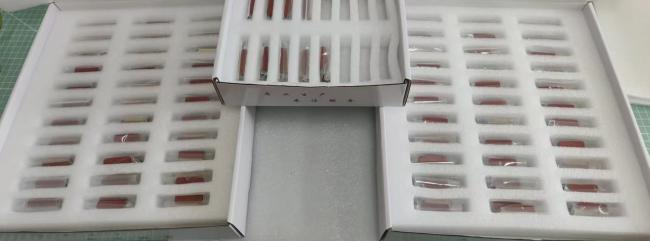

- Packaging: The J30J Series Connector is carefully packaged in a sturdy cardboard box to ensure safe delivery.
- Shipping: We ship the J30J Series Connector using a reliable courier service to ensure prompt and secure delivery to your doorstep.
