Gold Plated Center Conductor 15 Contacts Pitch Distance 2.54 x 2.54 J30J Micro D Connectors Used for Right Angle PCB Connect

Product Description:

The J30J Series Connector is a high-quality Micro D Connector designed for various applications that require reliable and secure connections. With a durable construction and advanced features, this connector is ideal for demanding environments where performance is crucial.

Elite Electronic J30J Plug have 9pin, 15 pins, 21pin, 25 pin, 31pins, 37pin, 51pin, the J30J Series Connector is a versatile solution for applications that require a high-density connector with a rectangular design. The pins configuration allows for the transmission of multiple signals or data streams, making it ideal for complex connectivity needs.

Whether used in industrial equipment, aerospace systems, medical devices, or other critical applications, the J30J Series Connector offers a robust and dependable connection solution. Its compact size and reliable performance make it a preferred choice for engineers and designers seeking a reliable Micro D Connector for their projects.

Features:

• Center Conductor: Made of Copper Alloy with Gold Plating, ensuring excellent conductivity and resistance to corrosion.
• Insulation Resistance: Meets the standard of ≥5000MΩ, providing reliable insulation to prevent signal interference.
• Mating Accessories: Compatible with a wide range of accessories including P, P0, P2, P3, P4, P5, P7, P8, P9, P10, P11, and P14, offering versatility in connectivity options.
• DWV: Withstands up to 800V Dielectric Withstanding Voltage, ensuring safety and reliability in high-voltage applications.

Technical Parameters:

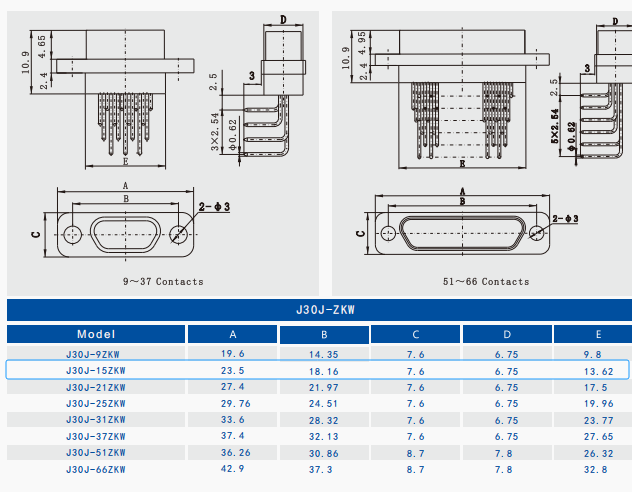

Outline Dimension of J30J Micro D Connectors 15 pins Right Angle PCB Contact

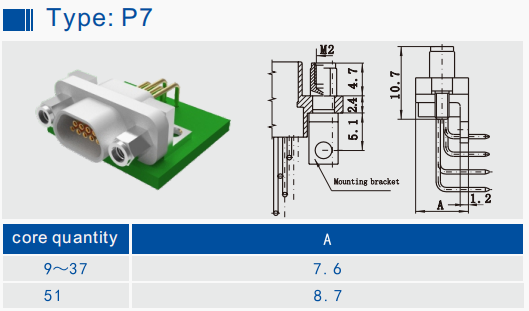

The P7 Assesories:

Applications:

Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres

- Board to Cable
- Medical applications
- Surface Mount (SMT) Board to Cable

Packing and Shipping:

Product Packaging:

The J30J Series Connector is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The connector is wrapped in protective bubble wrap to prevent any damage during transit.

Shipping Information:

Once your order is placed, for the stocked products, the J30J Series Connector will be shipped within 5-10 business days. We offer standard shipping options with tracking information provided.
